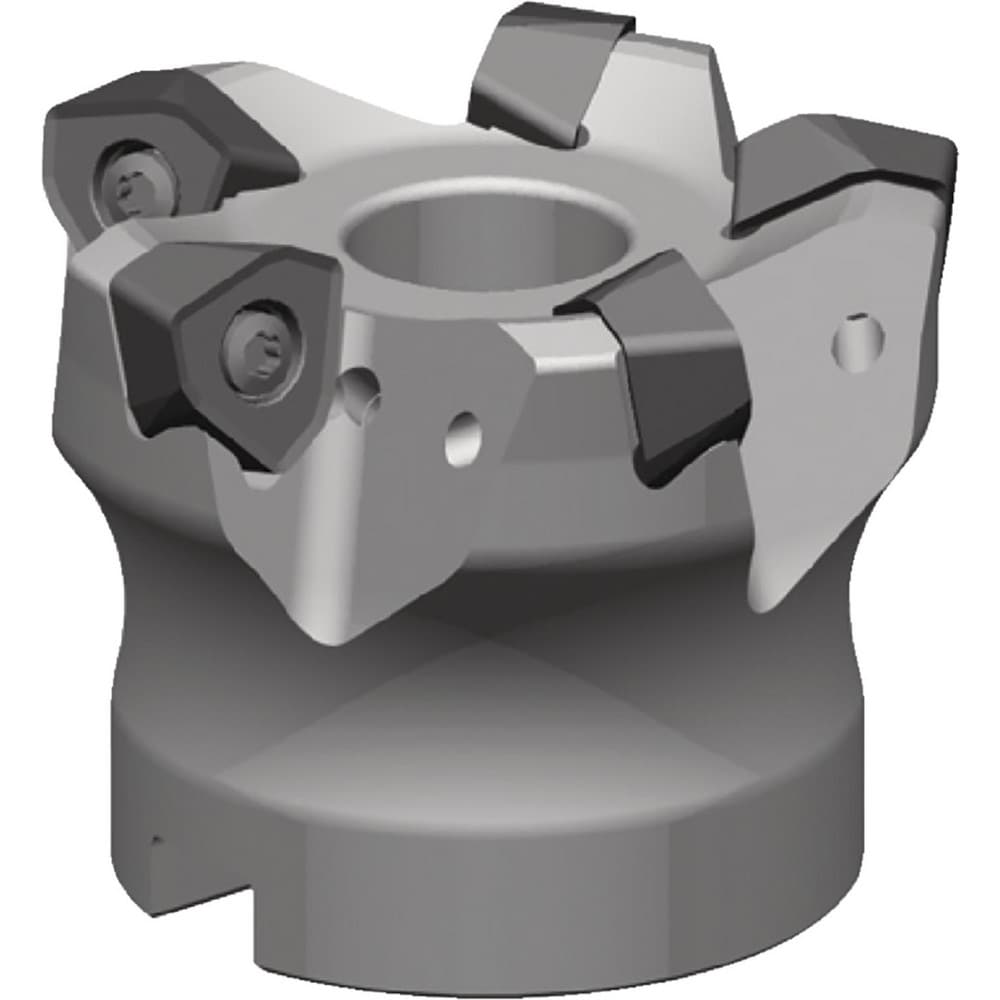

Brand: Widia / Part #: 5352398
Item #: 40050791
Brand: Widia
Model #: 5352398
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.8340 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0780 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | WOEJ120713_R__ |
| Maximum Ramping Angle | 2.5 |
| Cutter Style | M370 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M370 |
| Maximum Body Diameter (Decimal Inch) | 2.3670 |
| Keyway Width (mm) | 8.14 |
| Overall Height (Inch) | 1-3/4 |
| Maximum RPM | 17330.000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Slotting; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
