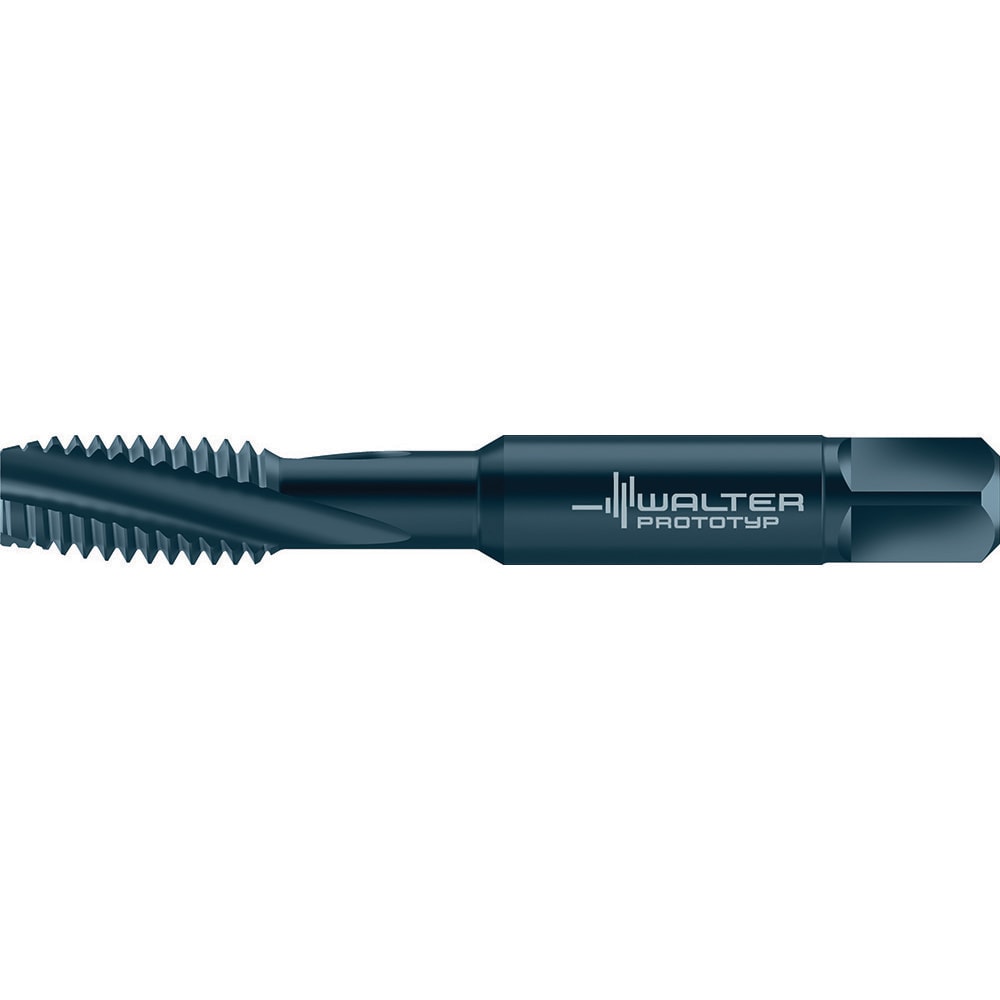

Spiral Flute Tap: #1-72, UNF, 2 Flute, Bottoming Chamfer, 3B Class of Fit, High-Speed Steel-E, Steam Oxide Finish
Item #: 53437588
Brand: Walter-Prototyp
Model #: 8046447
Product Specifications
| Thread Size (Inch) | #1-72 |
| Thread Standard | UNF |
| Chamfer | Bottoming |
| Material | High-Speed Steel-E |
| Thread Limit | H9 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 2 |
| Flute Direction | Right Hand |
| Helix Angle | 15.00 |
| Oversize | No |
| Threads per Inch | 72 |
| Thread Length (Decimal Inch) | 0.2756 |
| Thread Length (mm) | 7.00 |
| Overall Length (Decimal Inch) | 1.7185 |
| Overall Length (mm) | 43.6500 |
| Application | Threading |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Diameter (mm) | 3.5800 |
| Tapping Depth (Decimal Inch) | 0.2756 |
| Tapping Depth (mm) | 7.00 |
| Square Length (mm) | 4.83 |
| Square Length (Decimal Inch) | 0.1902 |
| Square Size (Decimal Inch) | 0.1100 |
| Square Size (mm) | 2.79 |
| Flute Style | Spiral |
| Series | A2340661S |
| UNSPSC Code | 23241600 |
