Brand: Widia / Part #: 3878415

Brand: Widia / Part #: 3878415


Item #: 98262827
Brand: Widia
Model #: 3878415

Product Specifications

Cutting Direction Left Hand
Hand of Holder Left Hand
Compatible Insert Size Code 1606..

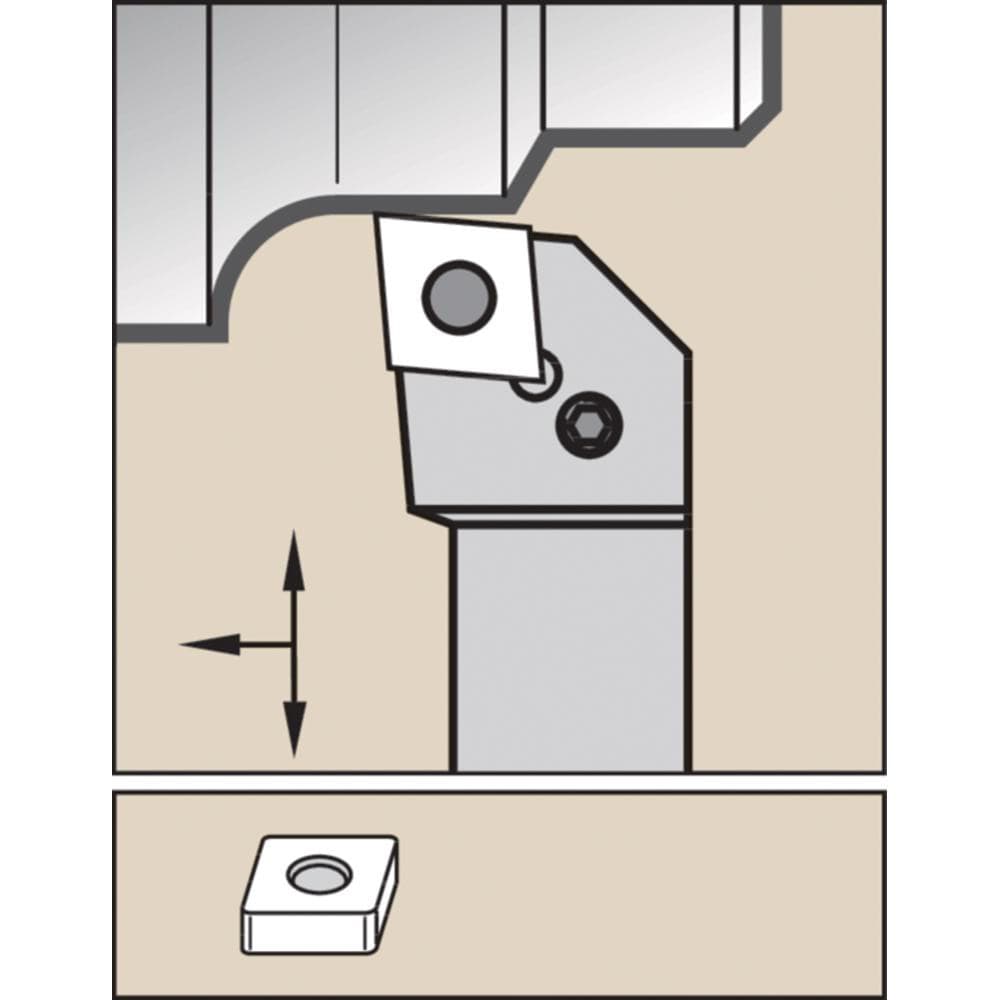

Toolholder Style PCLNL
Rake Negative
Rake Angle -6 (Axial);-6 (Radial)
Multi-use Tool Yes
Lead Angle 95.000
Insert Holding Method Pin
Insert Compatibility CN..1606..
Shank Width (mm) 32.00
Shank Height (mm) 32.00
Series PCLN
Overall Length (mm) 170.0000
Cutting Tool Application Facing; Copying; Turning
Head Length (mm) 36.07
Back of Bar to Cutting Edge (mm) 40.00
Primary Workpiece Material Universal
Insert Width (mm) 15.88
Toolholder Material Steel
ISO Number PCLNL3232P16
Complete Insert Compatibility CN..
Insert Thickness 6.35
Coolant Through No
Insert Inscribed Circle (mm) 15.88
$169.89
