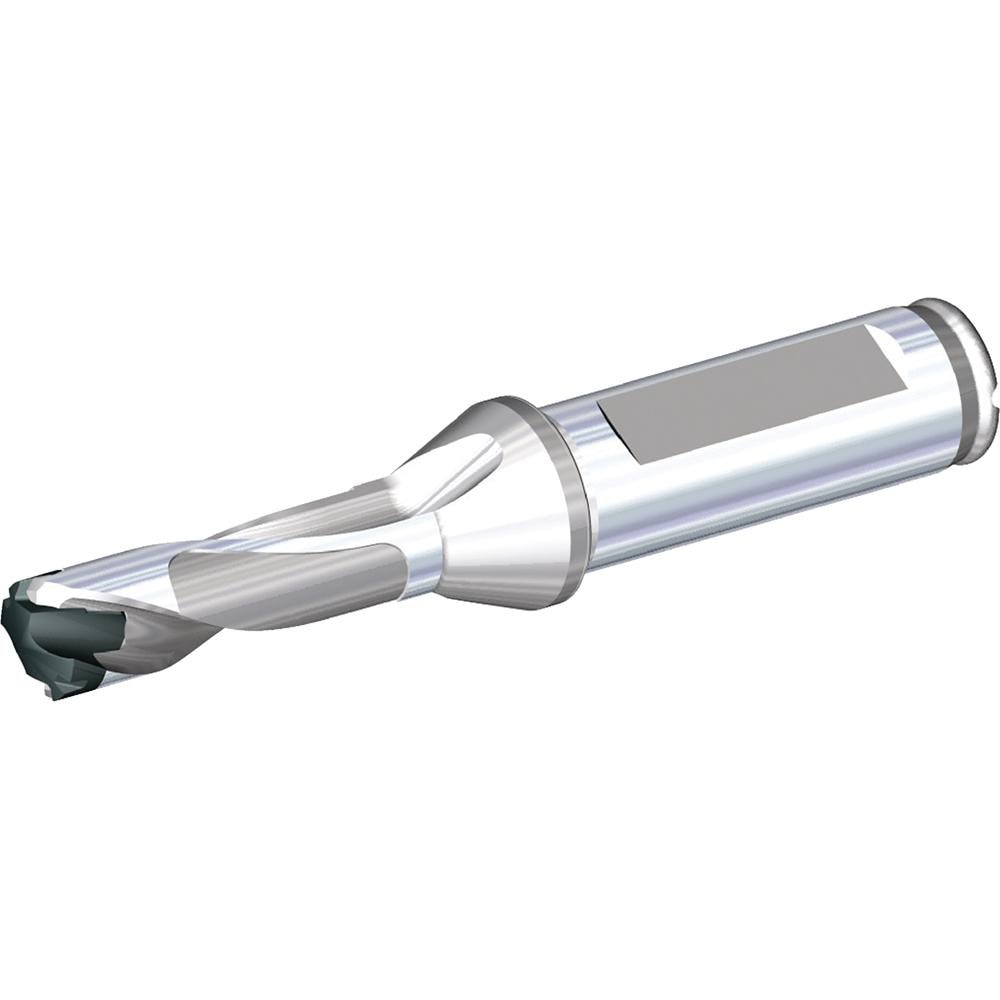

Brand: Widia / Part #: 3992070

Brand: Widia / Part #: 3992070


Item #: 90233859
Brand: Widia
Model #: 3992070

Product Specifications

Minimum Drill Diameter (mm) 21.00
Maximum Drill Diameter (mm) 21.99
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (mm) 66.00
Shank Type Flatted
Insert Style TDM
Insert Seat Size W30
Shank Diameter (mm) 25.0000
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W30
Overall Length (mm) 152.5000
Series TDM1
Toolholder Style TDM1
Flute Length (mm) 91.00
Body Length 96.500
Shank Length (mm) 56.000
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$423.93
