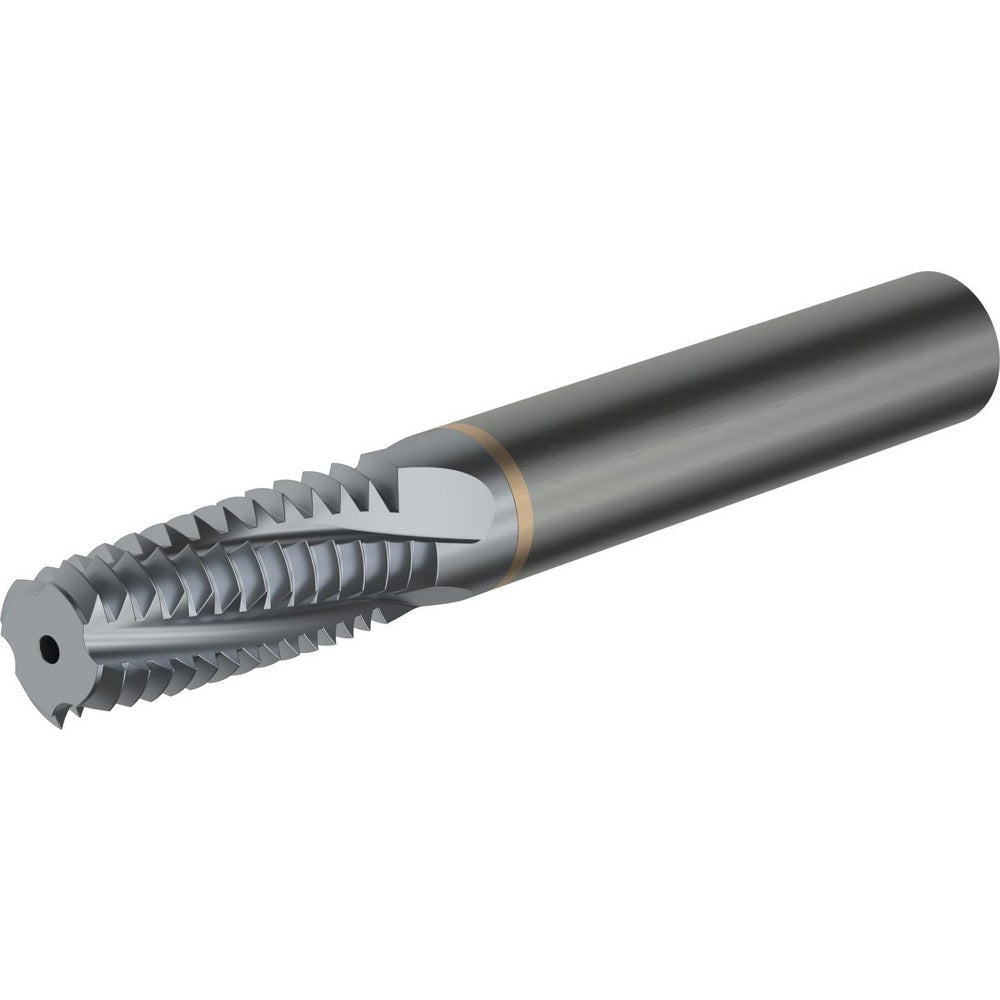

Brand: Vargus / Part #: 81223
Item #: 88216072
Brand: Vargus
Model #: 81223
Product Specifications
| Material | Carbide |
| Thread Size (Inch) | #10-24 |
| Thread Depth (Decimal Inch) | 0.396 |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Cutting Diameter (mm) | 3.55 |
| Cutting Diameter (Decimal Inch) | 0.1398 |
| Length of Cut (mm) | 10.0000 |
| Minimum Nominal Diameter (Inch) | #10 |
| Shank Length (Decimal Inch) | 0.9760 |
| Shank Length (mm) | 26.000 |
| Overall Length (mm) | 42.0000 |
| Overall Length (Decimal Inch) | 1.6535 |
| Number Of Flutes | 4 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3937 |
| Thread Length (mm) | 10.05 |
| Thread Length (Decimal Inch) | 0.3960 |
