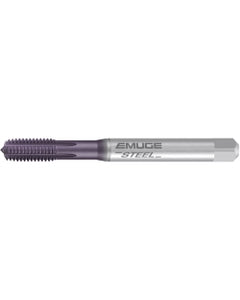

BU929000.5633 ROLL FORM
Item #: ER45U9290005633
Brand: EMUGE-FRANKEN
Model #: BU929000.5633
| Product Specifications | |
|---|---|
| Tool Type | | STI Tap | |
| Chamfer | 2P-3P |
| Style | Bottoming |
| Coating | TiCN |
| Thread Diameter Size (TDZ) | #4 |
| Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3BX |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Threads per Inch (TPI) | 48 |
| Standard | DIN | ANSI |
| Overall Length (OAL) | 2.205″ |
| Thread Size | #4 - 48 |
| Cutting Edge Material | HSSE |
| Application | Through Hole | Blind Hole |
| Applicable Material | | General Purpose | |
