Brand: Widia / Part #: 3879152
Item #: 97986004
Brand: Widia
Model #: 3879152
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 1506.. |
| Toolholder Style | PDJNR |
| Rake | Negative |
| Rake Angle | -7 (Axial);-6 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 93.000 |
| Insert Holding Method | Pin |
| Insert Compatibility | DN..1506.. |
| Shank Width (mm) | 32.00 |
| Shank Height (mm) | 32.00 |
| Series | PDJN |
| Overall Length (mm) | 170.0000 |

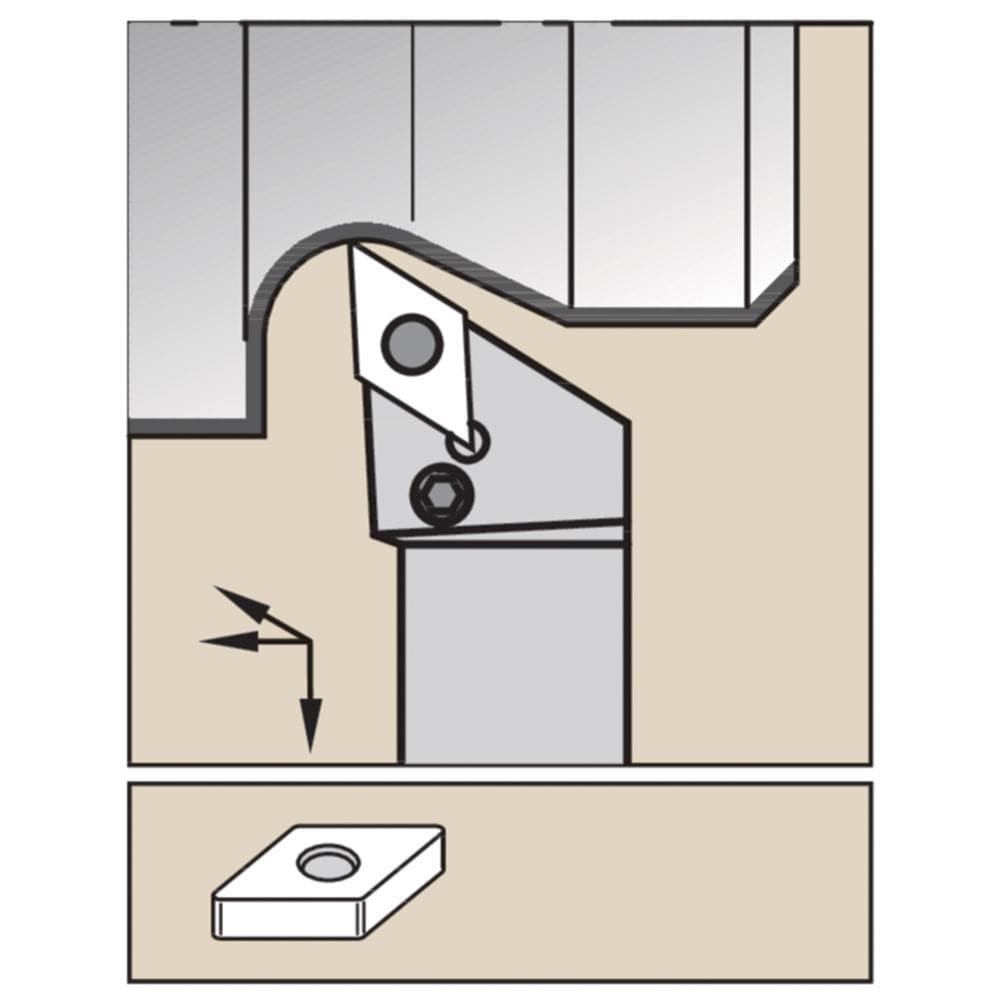

| Cutting Tool Application | Copying; Turning |
| Head Length (mm) | 36.07 |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 12.70 |
| Toolholder Material | Steel |
| ISO Number | PDJNR3232P15 |
| Complete Insert Compatibility | DN.. |
| Insert Thickness | 6.35 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 12.70 |
