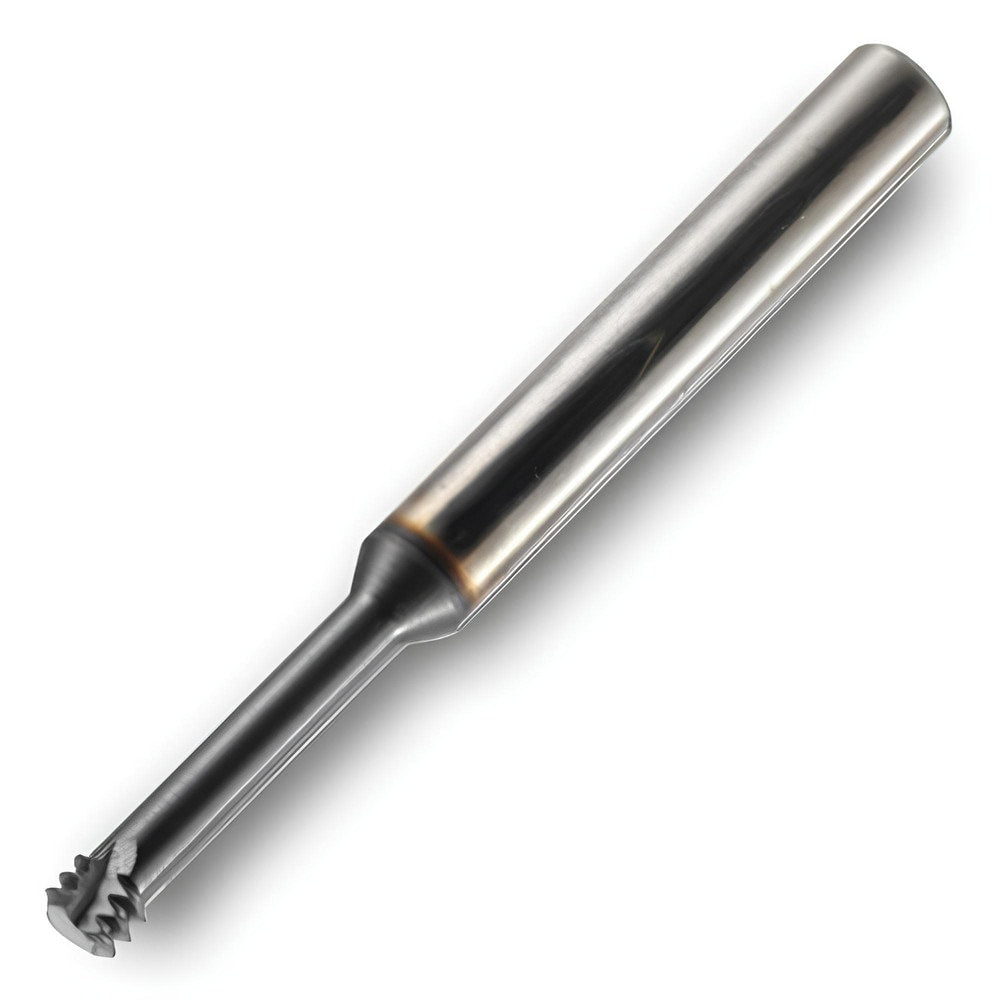

Brand: Ingersoll Cutting Tools / Part #: 5605719
Item #: 99346801
Brand: Ingersoll Cutting Tools
Model #: 5605719
Product Specifications
| Pitch (mm) | 1.25 |
| Material | Solid Carbide |
| Thread Size (mm) | M8x1.25 |
| Thread Depth (mm) | 23.88 |
| Thread Depth | 23.8800 |
| Thread Type | Metric |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.2340 |
| Length of Cut (mm) | 23.8800 |
| Minimum Nominal Diameter (mm) | 8.00 |
| Shank Length (mm) | 39.620 |
| Overall Length (mm) | 63.5000 |
| Thread Standard | Metric |
| Thread Mill Type | Long Reach |
| Flute Direction | Right Hand |
| Material Grade | IN2006 |
| Series | MTECSH-ISO |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Thread Length (mm) | 8.00 |
