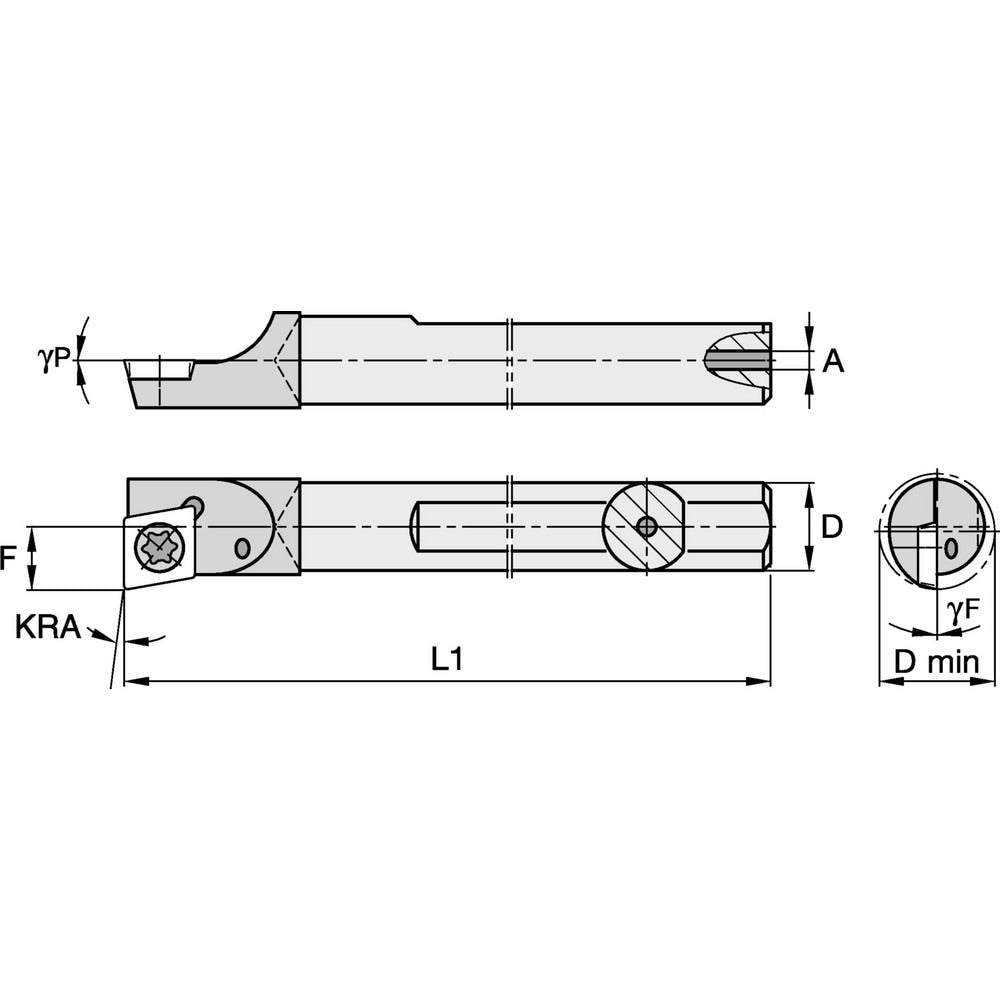

Brand: Widia / Part #: 2822301

Brand: Widia / Part #: 2822301


Item #: 02774693
Brand: Widia
Model #: 2822301

Product Specifications

Minimum Bore Diameter (Decimal Inch) 0.6800
Maximum Bore Depth (Decimal Inch) 4.3750
Toolholder Style C6256
Tool Material Carbide
Shank Diameter (Decimal Inch) 0.6250
Hand of Holder Right Hand
Shank Diameter (Inch) 5/8
Overall Length (Decimal Inch) 6.0000
Overall Length (Inch) 6
Compatible Insert Size Code CPMT3252
Insert Holding Method Screw
Compatible Insert Shape Diamond
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle -5.000
Lead Angle -5.000
Series SDBIC
Insert Inscribed Circle (Inch) 3/8
Compatible Insert Thickness (Decimal Inch) 0.1563
Compatible Insert Thickness (mm) 3.97
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (Decimal Inch) 0.6655
Center to Cutting Edge (Decimal Inch) 0.3530
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.1563
Insert Thickness (Inch) 5/32
Coolant Hole Diameter (Decimal Inch) 0.2180
Number of Inserts Included in Order 0
Manufacturers Catalog Number SDBIC62565R
Radial Rake 0
Coolant Through Yes
