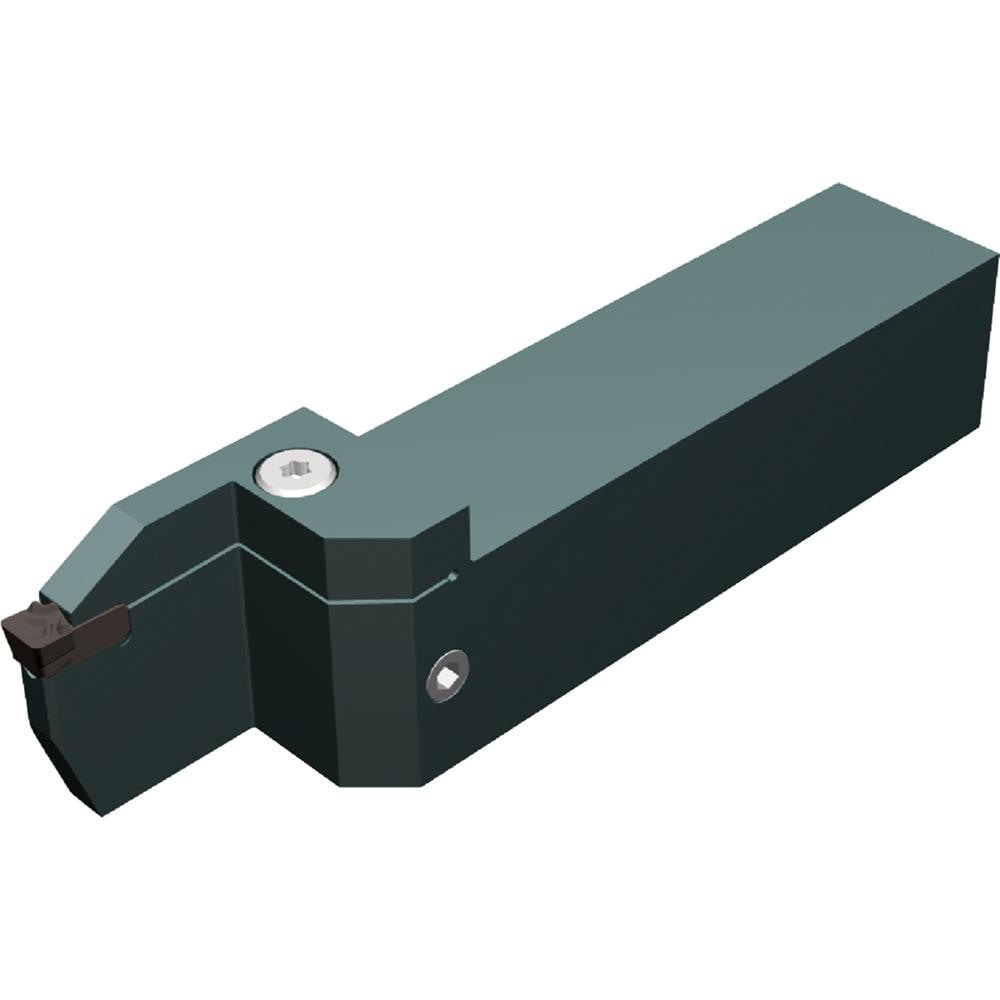

Brand: Widia / Part #: 6461972

Brand: Widia / Part #: 6461972


Item #: 98380868
Brand: Widia
Model #: 6461972

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 1.0240
Hand of Holder Left Hand
Maximum Groove Width (Decimal Inch) 0.1580
Minimum Groove Width (Decimal Inch) 0.1575
Toolholder Style WGCSM
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0400
Insert Compatibility WG0400M04P04
Shank Height (Inch) 1
Shank Height (Decimal Inch) 1.0000
Shank Length (Decimal Inch) 4.1500
Shank Width/Diameter (Decimal Inch) 1.0000
Shank Width/Diameter (Inch) 1
Series WGC
Overall Length (Decimal Inch) 6.0000
Cutting Tool Application Grooving; Facing; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 1.0030
Head Height (mm) 35.000
Head Length (Decimal Inch) 1.8504
Primary Workpiece Material Universal
Insert Seat Size 4.0
Coolant Through Yes
$176.52
