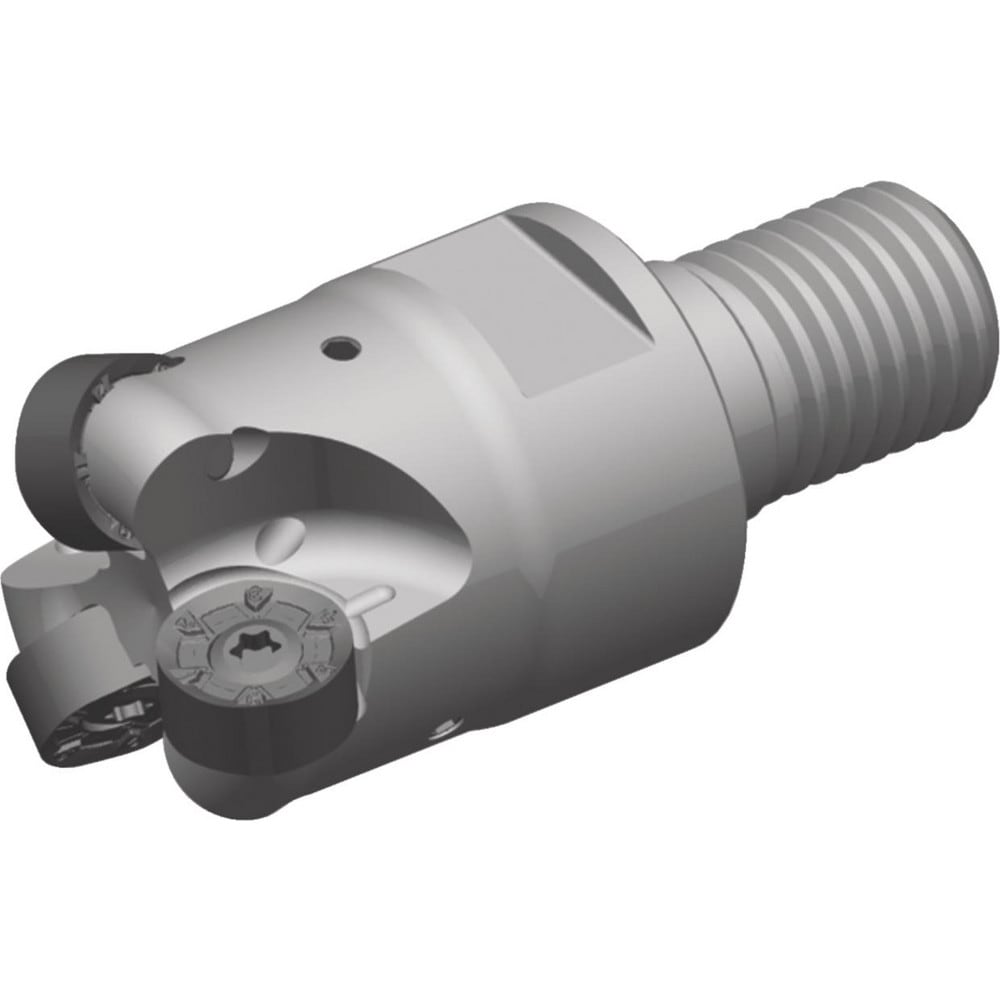

Brand: Widia / Part #: 4147562
Item #: 99392078
Brand: Widia
Model #: 4147562
Product Specifications
| Minimum Cutting Diameter (mm) | 30.00 |
| Maximum Cutting Diameter (mm) | 42.00 |
| Maximum Depth of Cut (mm) | 3.00 |
| Toolholder Style | M200 |
| Shank Type | Modular Connection |
| Shank Diameter | 1.1420 |
| Maximum Ramping Angle | 0.42 |
| Compatible Insert Style | RN_J |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 1204M0 |
| Number Of Cutter Inserts | 4 |
| Overall Length (mm) | 40.0000 |
| Series | M200 |
| Flute Type | Straight |
| Maximum Rpm | 34180.000 |
| Functional Length (mm) | 40.00 |
| Head Length (mm) | 40.00 |
| Insert Diameter (mm) | 12.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
