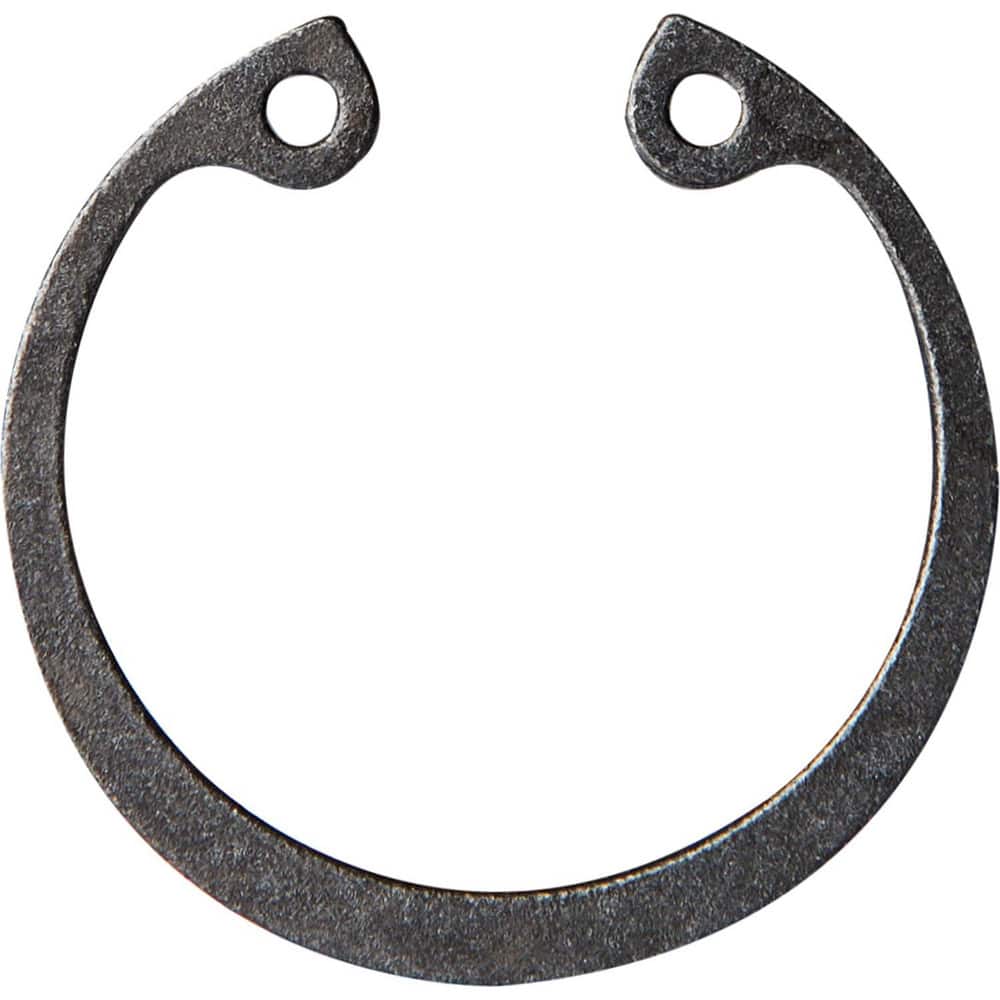

Internal Retaining Rings; Ring Type: HO Style; Groove Diameter: 1.792; Bore Diameter (Decimal Inch): 1.6880; Groove Diameter Tolerance: +0.004/-0.005; Free Diameter: 1.874; Free Outside Diameter: 0; Material: Spring Steel; Groove Width (Decimal Inch): 0.0
Item #: 99703480
Brand: Rotor Clip
Model #: HO-168ST PD
Product Specifications
| Ring Type | HO Style |
| Groove Diameter | 1.792 |
| Bore Diameter (Decimal Inch) | 1.6880 |
| Groove Diameter Tolerance | +0.004/-0.005 |
| Free Diameter | 1.874 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.0680 |
| Finish | Phosphate |
| Groove Width Tolerance | +0.004/-0.000 |
| Groove Depth | .052 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 15022 |
