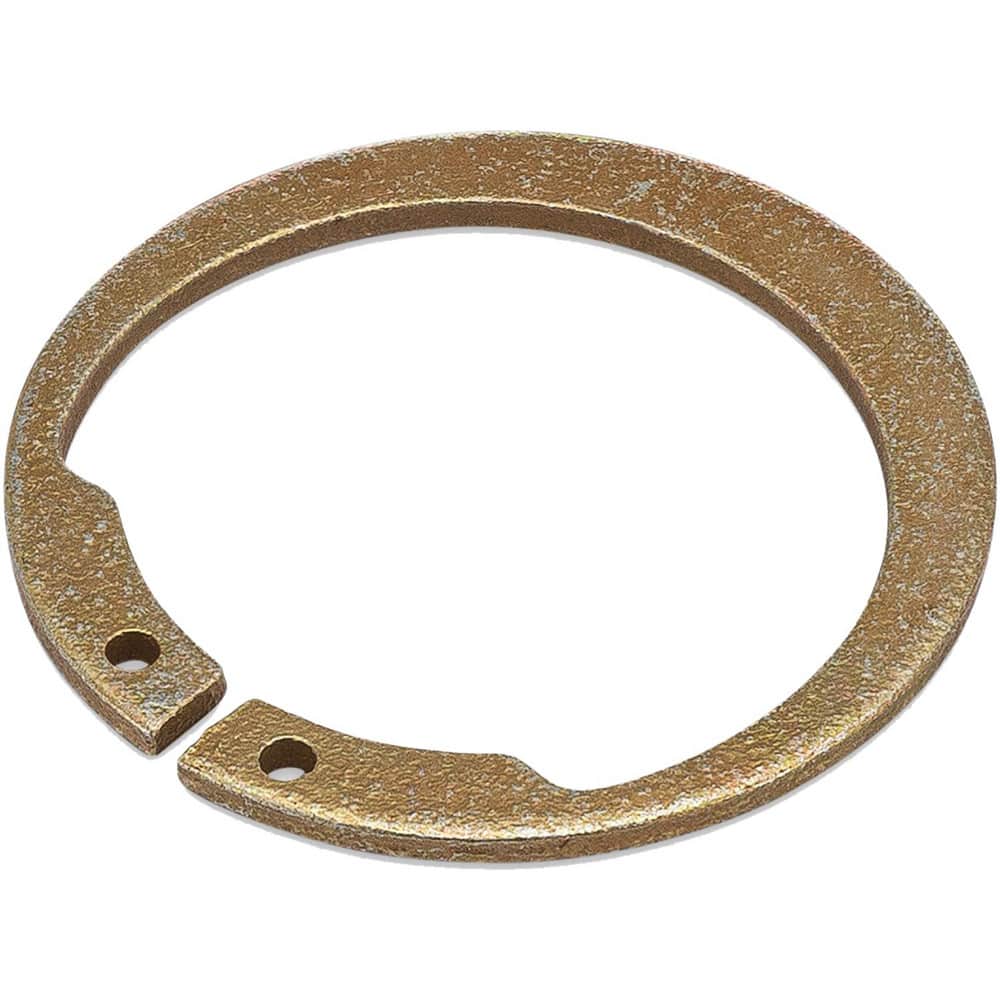

External Retaining Rings; Ring Type: SHI Style; Groove Diameter: 1.65; Groove Diameter Tolerance: +0.004/-0.000; Free Diameter: 1.637; Free Outside Diameter: 0; Material: Spring Steel; Finish: Phosphate; Material: Spring Steel; Groove Width Tolerance: +0.
Item #: 99700098
Brand: Rotor Clip
Model #: SHI-177ST PD
Product Specifications
| Ring Type | SHI Style |
| Groove Diameter | 1.65 |
| Groove Diameter Tolerance | +0.004/-0.000 |
| Free Diameter | 1.637 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Finish | Phosphate |
| Groove Width Tolerance | +0.004/-0.000 |
| Groove Depth | 0.05 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 8628 |
| Groove Width (Decimal Inch) | 0.0680 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Free Diameter Tolerance (Decimal Inch) | +.013/-.020 |
