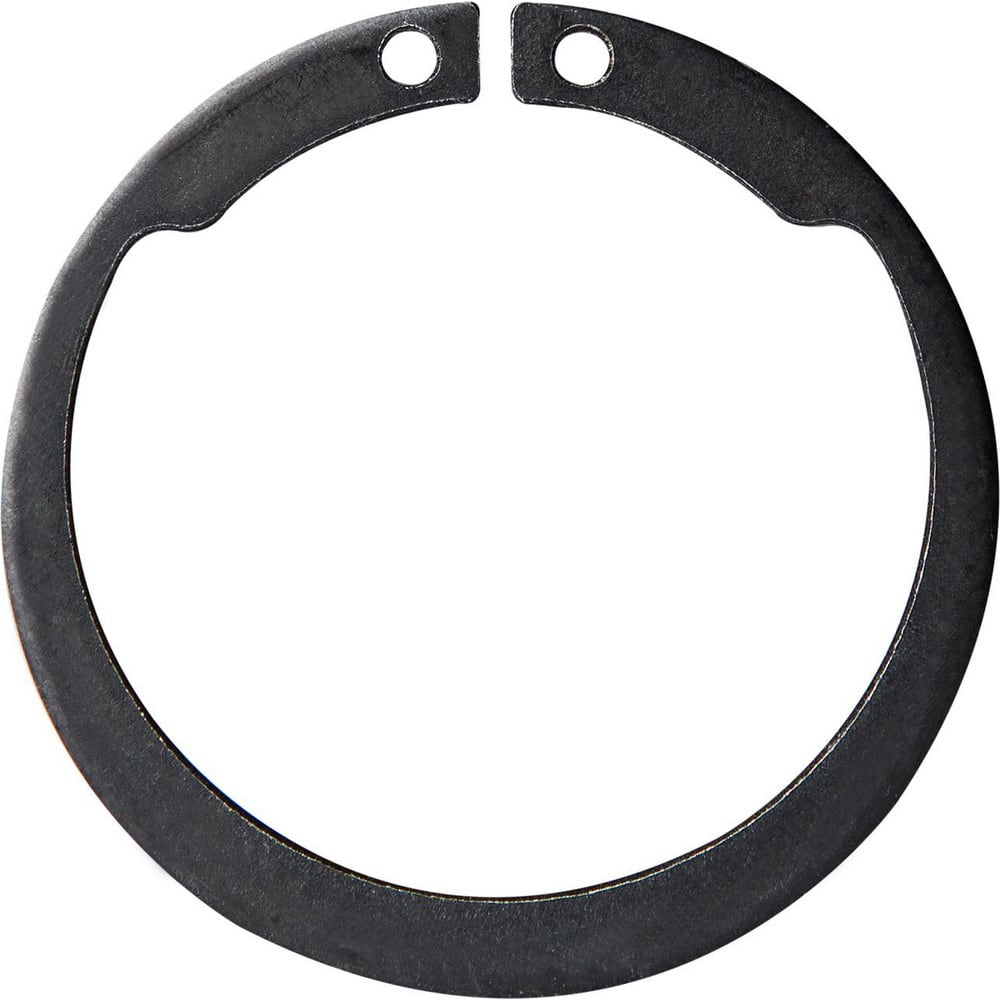

External Retaining Rings; Ring Type: SHI Style; Groove Diameter: 2.36; Groove Diameter Tolerance: +0.005/-0.000; Free Diameter: 2.313; Free Outside Diameter: 0; Material: Spring Steel; Finish: Phosphate; Material: Spring Steel; Groove Width Tolerance: +0.
Item #: 99697534
Brand: Rotor Clip
Model #: SHI-250ST PD
Product Specifications
| Ring Type | SHI Style |
| Groove Diameter | 2.36 |
| Groove Diameter Tolerance | +0.005/-0.000 |
| Free Diameter | 2.313 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Finish | Phosphate |
| Groove Width Tolerance | +0.005/-0.000 |
| Groove Depth | 0.07 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 15530 |
| Groove Width (Decimal Inch) | 0.0860 |
| Ring Thickness (Decimal Inch) | 0.0780 |
| Free Diameter Tolerance (Decimal Inch) | +.015/-.025 |
