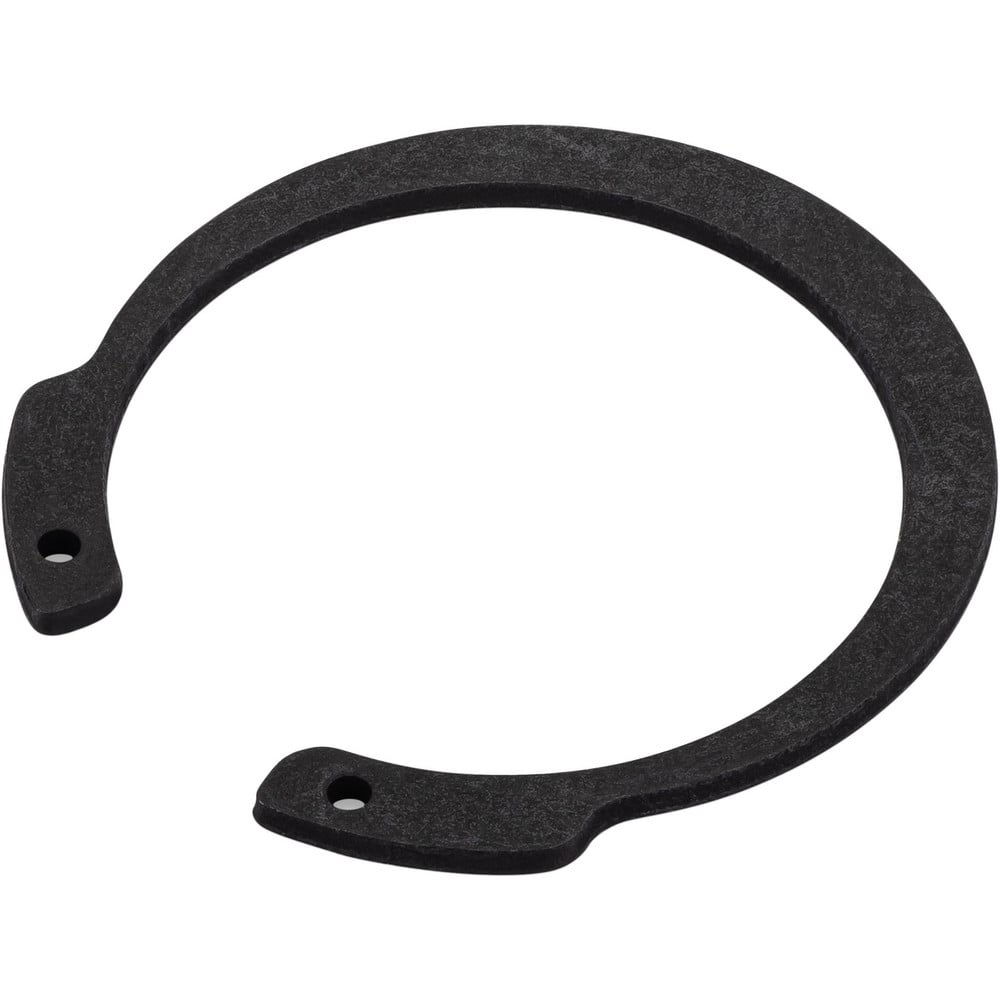

Internal Retaining Rings; Ring Type: HOI Style; Groove Diameter: 1.658; Bore Diameter (Decimal Inch): 1.5620; Groove Diameter Tolerance: +0.005/-0.005; Free Diameter: 1.688; Free Outside Diameter: 0; Material: Spring Steel; Groove Width (Decimal Inch): 0.
Item #: 99696700
Brand: Rotor Clip
Model #: HOI-156ST PD
Product Specifications
| Ring Type | HOI Style |
| Groove Diameter | 1.658 |
| Bore Diameter (Decimal Inch) | 1.5620 |
| Groove Diameter Tolerance | +0.005/-0.005 |
| Free Diameter | 1.688 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.0680 |
| Finish | Phosphate |
| Groove Width Tolerance | +0.004/-0.000 |
| Groove Depth | 0.048 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 7714 |
