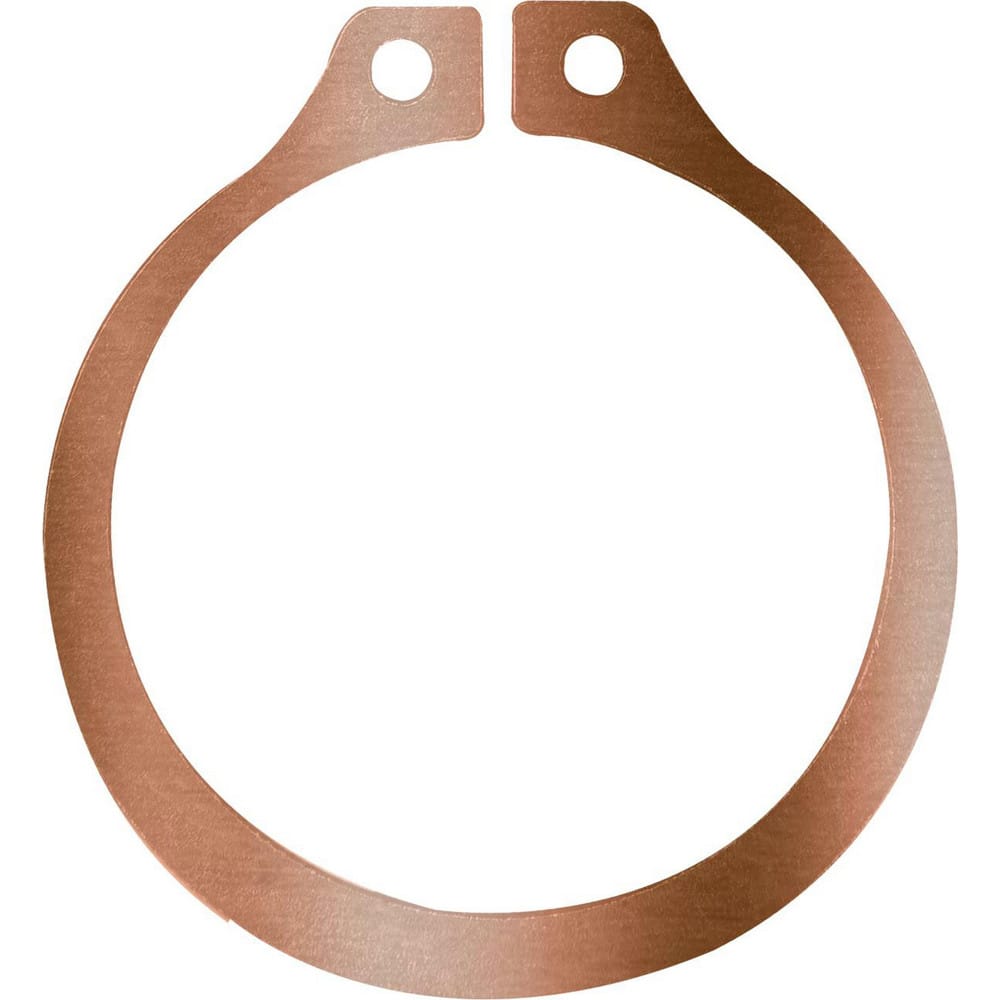

External Retaining Rings; Ring Type: SH Style; Groove Diameter: .175; Groove Diameter Tolerance: +/-0.0015; Free Diameter: .168; Free Outside Diameter: 0; Material: Beryllium Copper; Material: Beryllium Copper; Groove Width Tolerance: +0.002/-0.000; Groov
Item #: 99696676
Brand: Rotor Clip
Model #: SH-18BC
Product Specifications
| Ring Type | SH Style |
| Groove Diameter | .175 |
| Groove Diameter Tolerance | +/-0.0015 |
| Free Diameter | .168 |
| Free Outside Diameter | 0 |
| Material | Beryllium Copper |
| Groove Width Tolerance | +0.002/-0.000 |
| Groove Depth | .005 |
| Ring Thickness Tolerance | +/-0.002 |
| Thrust Load Capacity | 244 |
| Groove Width (Decimal Inch) | 0.0180 |
| Ring Thickness (Decimal Inch) | 0.0150 |
| Free Diameter Tolerance (Decimal Inch) | +0.002/-0.004 |
