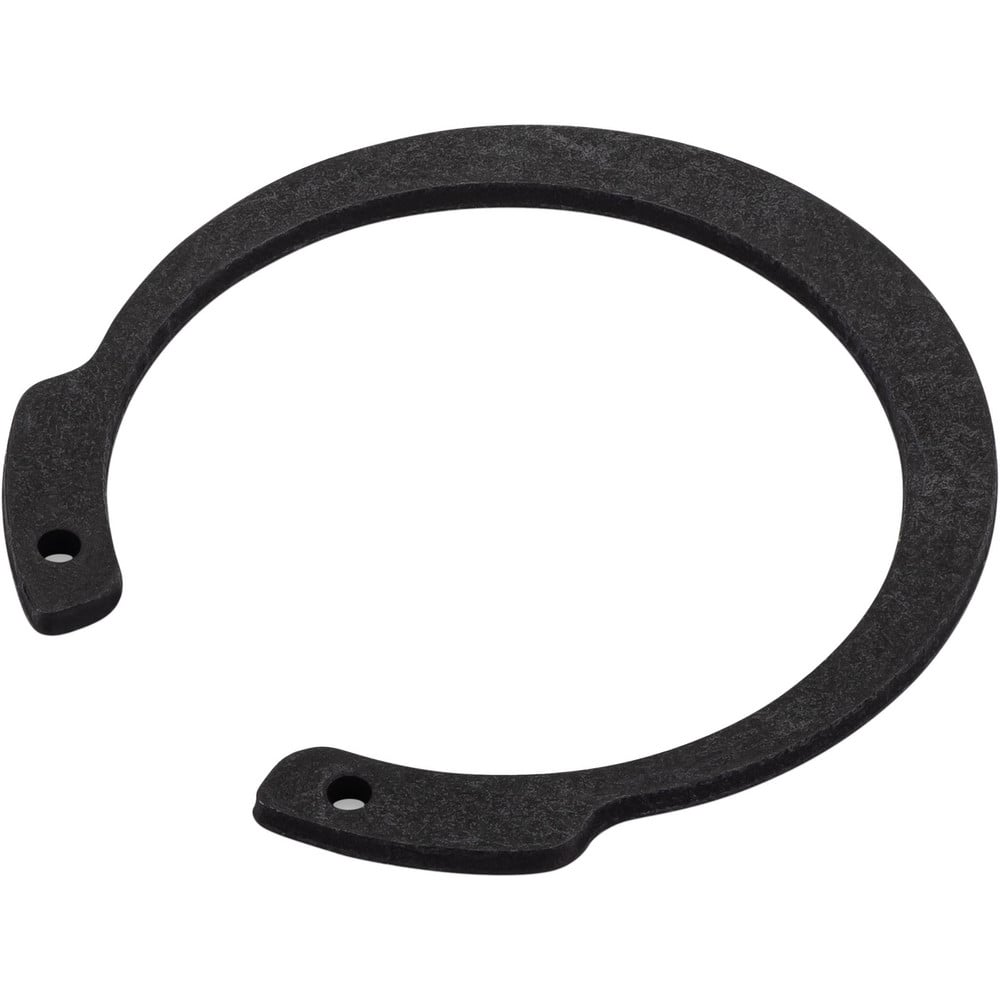

Internal Retaining Rings; Ring Type: HOI Style; Groove Diameter: 1.528; Bore Diameter (Decimal Inch): 1.4380; Groove Diameter Tolerance: +0.004/-0.005; Free Diameter: 1.552; Free Outside Diameter: 0; Material: Spring Steel; Groove Width (Decimal Inch): 0.
Item #: 99541831
Brand: Rotor Clip
Model #: HOI-143ST PD
Product Specifications
| Ring Type | HOI Style |
| Groove Diameter | 1.528 |
| Bore Diameter (Decimal Inch) | 1.4380 |
| Groove Diameter Tolerance | +0.004/-0.005 |
| Free Diameter | 1.552 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.0560 |
| Finish | Phosphate |
| Groove Width Tolerance | +0.004/-0.000 |
| Groove Depth | 0.045 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Ring Thickness Tolerance | +/-0.002 |
| Thrust Load Capacity | 5735 |
