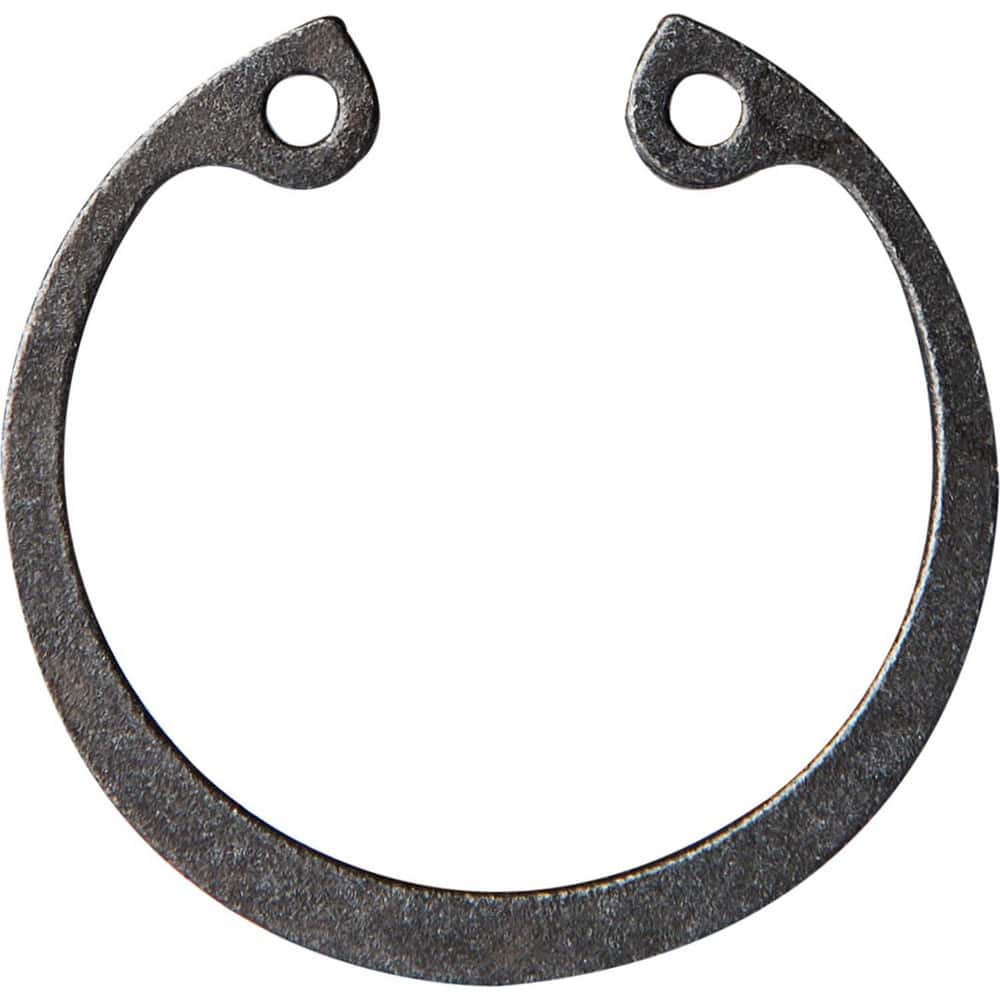

Internal Retaining Rings; Ring Type: HO Style; Groove Diameter: 2.056; Bore Diameter (Decimal Inch): 1.9380; Groove Diameter Tolerance: +0.005/-0.005; Free Diameter: 2.141; Free Outside Diameter: 0; Material: Spring Steel; Groove Width (Decimal Inch): 0.0
Item #: 99541815
Brand: Rotor Clip
Model #: HO-193ST PD
Product Specifications
| Ring Type | HO Style |
| Groove Diameter | 2.056 |
| Bore Diameter (Decimal Inch) | 1.9380 |
| Groove Diameter Tolerance | +0.005/-0.005 |
| Free Diameter | 2.141 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.0680 |
| Finish | Phosphate |
| Groove Width Tolerance | +0.004/-0.000 |
| Groove Depth | 0.059 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 17255 |
