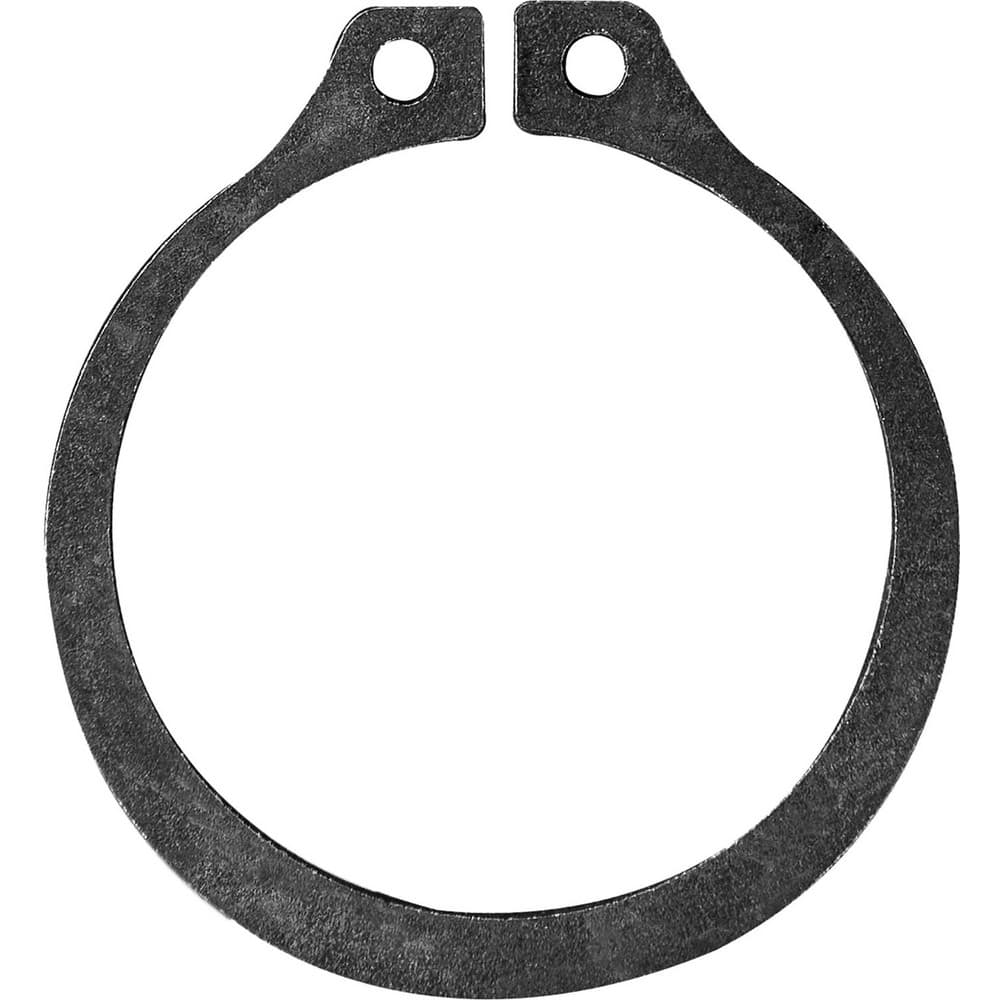

External Retaining Rings; Ring Type: SH Style; Groove Diameter: 41.5; Groove Diameter Tolerance: -0.025; Free Diameter: 40.5; Free Outside Diameter: 0; Material: Spring Steel; Finish: Phosphate; Material: Spring Steel; Groove Depth: 1.25; Ring Thickness T
Item #: 99502411
Brand: Rotor Clip
Model #: DSH-44ST PD
Product Specifications
| Ring Type | SH Style |
| Groove Diameter | 41.5 |
| Groove Diameter Tolerance | -0.025 |
| Free Diameter | 40.5 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Finish | Phosphate |
| Groove Depth | 1.25 |
| Ring Thickness Tolerance | +/- 0.006 |
| Thrust Load Capacity | 48.5 |
| Groove Width (Decimal Inch) | 1.8500 |
| Ring Thickness (Decimal Inch) | 1.7500 |
| Free Diameter Tolerance (Decimal Inch) | +0.39/-0.9 |
