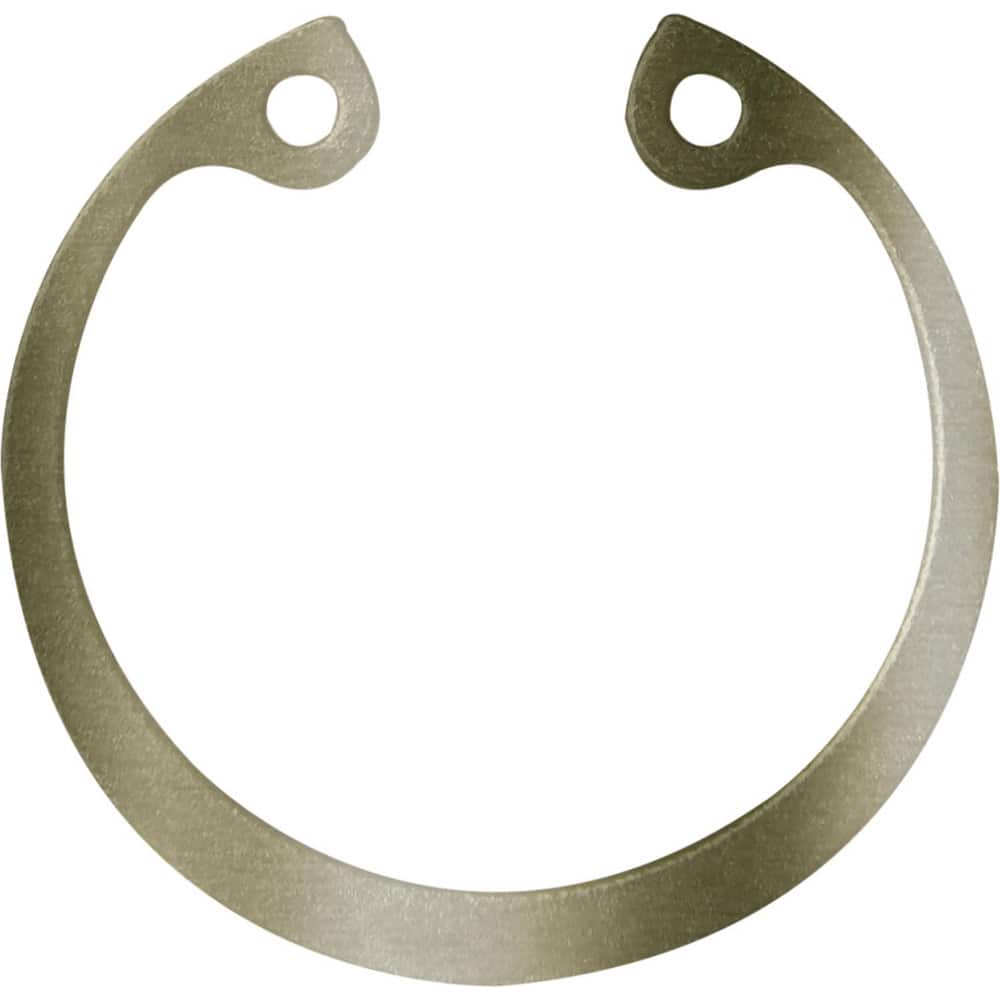

Internal Retaining Rings; Ring Type: HO Style; Groove Diameter: 1.755; Bore Diameter (Decimal Inch): 1.6530; Groove Diameter Tolerance: +0.004/-0.005; Free Diameter: 1.835; Free Outside Diameter: 0; Material: Spring Steel; Groove Width (Decimal Inch): 0.0
Item #: 99502395
Brand: Rotor Clip
Model #: HO-165ST ZD
Product Specifications
| Ring Type | HO Style |
| Groove Diameter | 1.755 |
| Bore Diameter (Decimal Inch) | 1.6530 |
| Groove Diameter Tolerance | +0.004/-0.005 |
| Free Diameter | 1.835 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.0680 |
| Groove Width Tolerance | +0.004/-0.000 |
| Groove Depth | .051 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 14718 |
