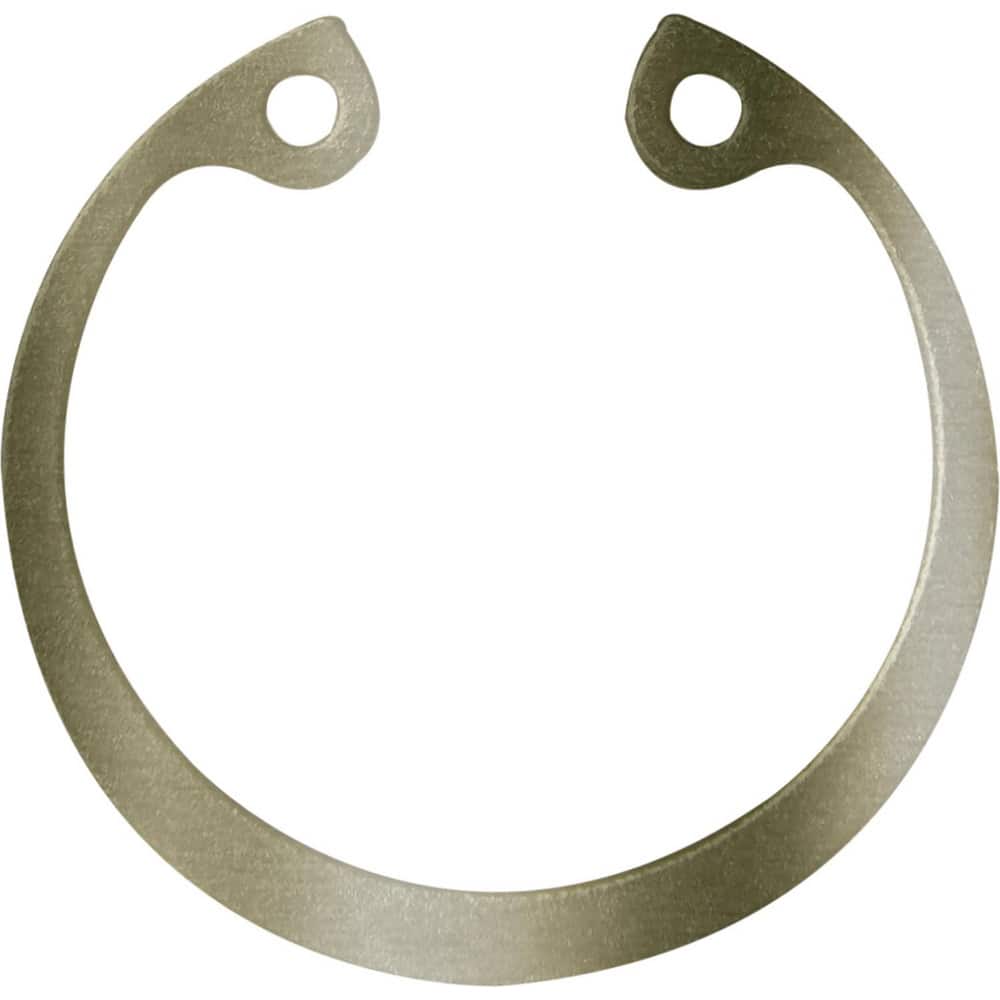

Internal Retaining Rings; Ring Type: HO Style; Groove Diameter: 2.584; Bore Diameter (Decimal Inch): 2.4400; Groove Diameter Tolerance: +0.006/-0.006; Free Diameter: 2.702; Free Outside Diameter: 0; Material: Spring Steel; Groove Width (Decimal Inch): 0.0
Item #: 99313264
Brand: Rotor Clip
Model #: HO-244ST ZD
Product Specifications
| Ring Type | HO Style |
| Groove Diameter | 2.584 |
| Bore Diameter (Decimal Inch) | 2.4400 |
| Groove Diameter Tolerance | +0.006/-0.006 |
| Free Diameter | 2.702 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.0860 |
| Groove Width Tolerance | +0.005/-0.000 |
| Groove Depth | 0.072 |
| Ring Thickness (Decimal Inch) | 0.0780 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 27304 |
