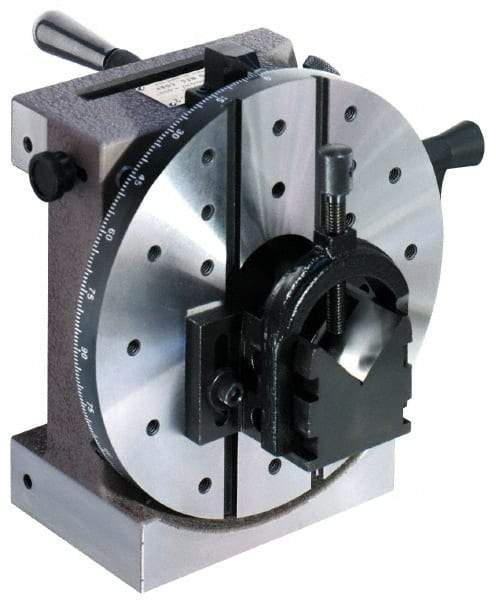

Harig - 24 Position, V-Block Grinding Fixture & Indexing Spacer - 4" High Centerline, 1-3/16" Spacer Through Hole, 8-5/16" OAL, 7-41/64" Overall Height
Item #: 99268567
Brand: Harig
Model #: 020-100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | V-Block Fixture |
| Includes Chuck | No |
| Number of Indexing Increments | 24 |
| Centerline Height (Decimal Inch) | 4.0000 |
| V-Block Capacity (Inch) | 2 |
| Spacer Through Hole Size (Inch) | 1-3/16 |
| Face Plate Diameter (Inch) | 6-7/8 |
| Indexing Accuracy (sec.) | 10.00; ±10 |
| Squareness - Base to Chuck (Decimal Inch) | 0.0001 |
| Parallelism Over Face (Decimal Inch) | 0.0001 |
| Overall Length (Inch) | 8-5/16 |
| Overall Height (Inch) | 7-41/64 |
| Overall Height (Decimal Inch) | 7.6406 |
| V Angle | 90.00 |
