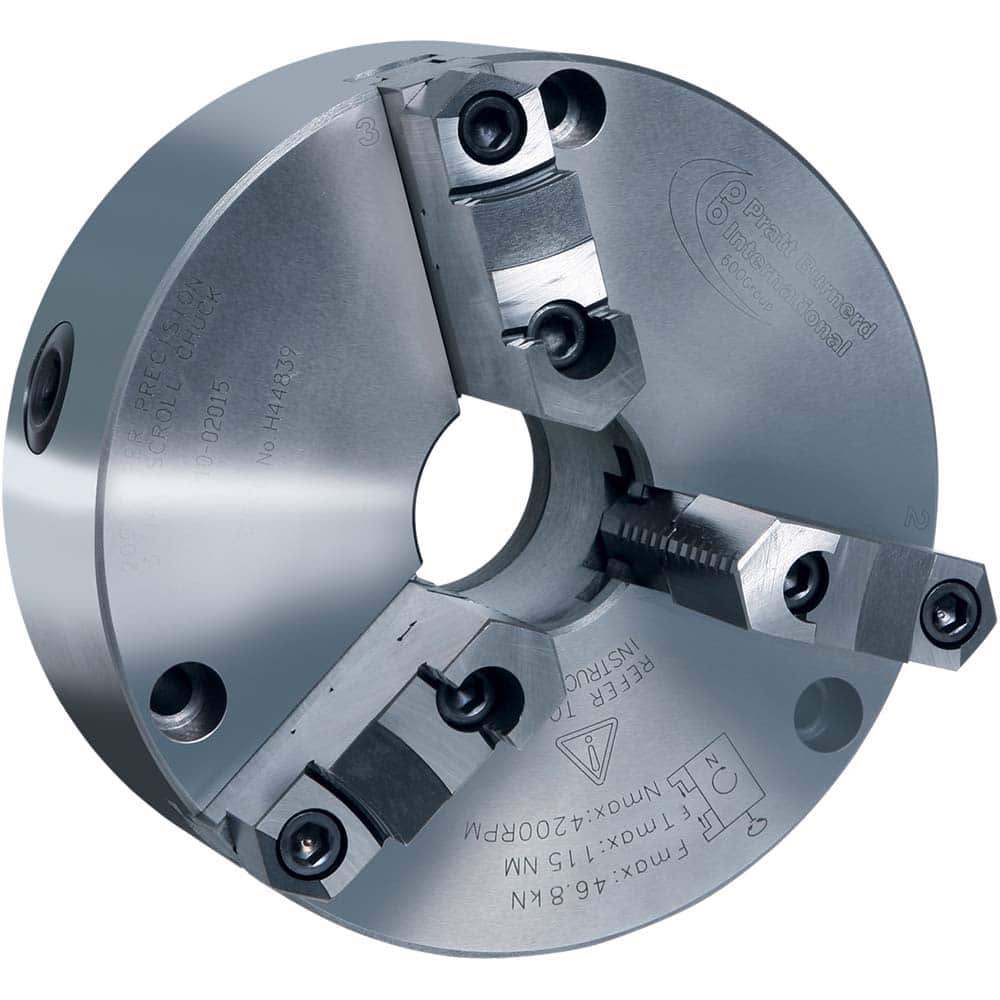

Pratt Burnerd America - Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 8 ; Number of Jaws: 3 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 2.1600 ; Body Material: Cast Iron (Semi-Steel)
Item #: 99154973
Brand: Pratt Burnerd America
Model #: 823500
Product Specifications
Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 8 ; Number of Jaws: 3 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 2.1600 ; Body Material: Cast Iron (Semi-Steel)
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 8 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 2.1600 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Decimal Inch) | 7.8700 |
| Minimum Jaw Capacity (Inch) | 0.1875; 3/16 |
| Minimum Jaw Capacity (Decimal Inch) | 0.1875; 3/16 |
| Maximum Jaw Capacity (Inch) | 6.5000; 6-1/2 |
| Maximum Jaw Capacity (Decimal Inch) | 6.5000; 6-1/2 |
| Series | 235 |
| Jaw Height (Decimal Inch) | 1.7500 |
| Adjustable | No |
| Jaw Type | Tongue & Groove Jaws |
| Radial Runout (Decimal Inch) | 0.0015 |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 2.8700 |
| Maximum RPM | 3100 |
| Includes | Mounting Plate |
