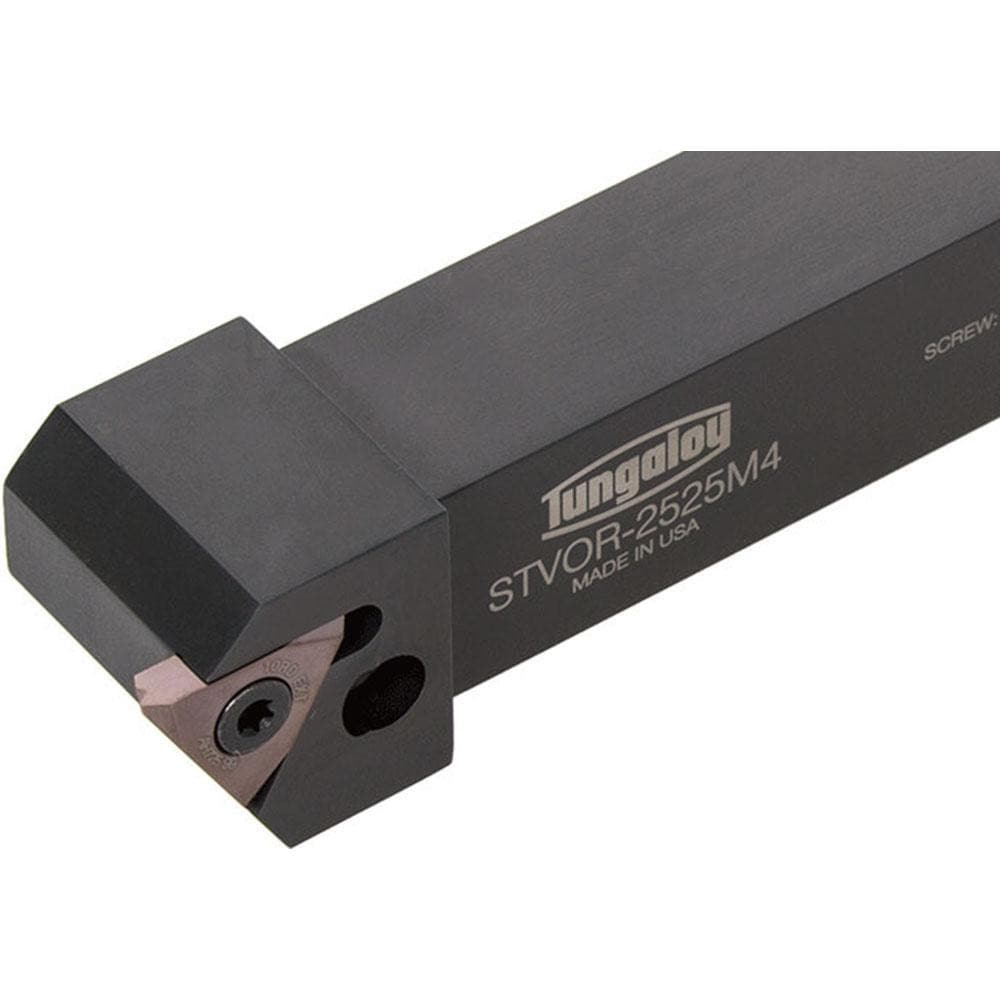

Indexable Threading Toolholder: External, Right Hand, Uses 54 Inserts, 25 x 25 mm Shank
Item #: 63265565
Brand: Tungaloy
Model #: 2476712
Product Specifications
| Thread Type | External |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 54 |
| Shank Width/Diameter (mm) | 25.00 |
| Toolholder Style | STVOR |
| Coolant Entry Style Code | 0 - Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 152.000 |
| Overall Length (mm) | 152.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (mm) | 36.00 |
| Back of Bar to Cutting Edge (mm) | 31.70 |
| Center to Cutting Edge (mm) | 31.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23291800 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Series | STVOR |
| Thread Type | External |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 54 |
| Shank Width/Diameter (mm) | 25.00 |
| Toolholder Style | STVOR |
| Coolant Entry Style Code | 0 - Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 152.000 |
| Overall Length (mm) | 152.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (mm) | 36.00 |
| Back of Bar to Cutting Edge (mm) | 31.70 |
| Center to Cutting Edge (mm) | 31.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23291800 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Series | STVOR |
| MSC Part # | 63265565 |
| Mfr Part # | 2476712 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
