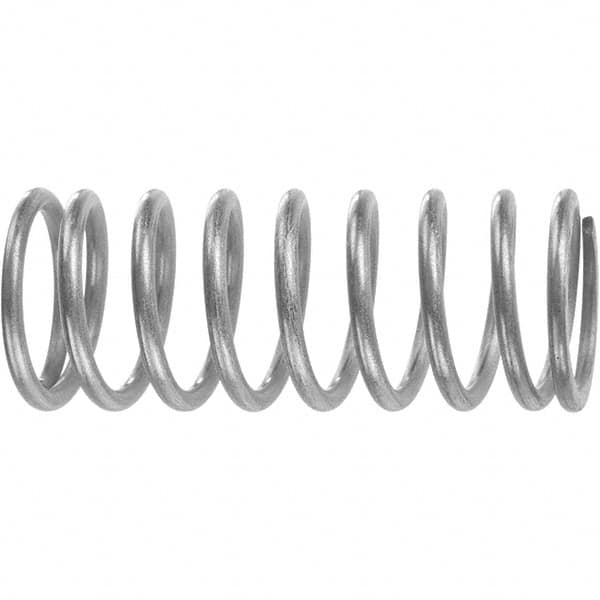

Compression Spring: 2.409″ OD, 4.75″ Free Length 0.192″ Wire Dia, 103.145 lb Max Load, 35.677 lb/in Spring Rate, Music Wire
Item #: 98890635
Brand: Associated Spring Raymond
Model #: C2409-192-4750M
Product Specifications
| Type | Compression |
| Outside Diameter (Decimal Inch) | 2.4090 |
| Free Length (Decimal Inch) | 4.750 |
| Free Length (mm) | 4.750 |
| Free Length | 4.750 |
| Spring Rate Pounds per Inch | 35.677 in.lb |
| Spring Rate Newtons | 35.677 in.lb |
| Maximum Work Load | 103.1450 |
| Solid Height | 1.416 |
| Spring Rate | 35.677 in.lb |
| Material | Music Wire |
| Wire Size (Decimal Inch) | 0.1920 |
