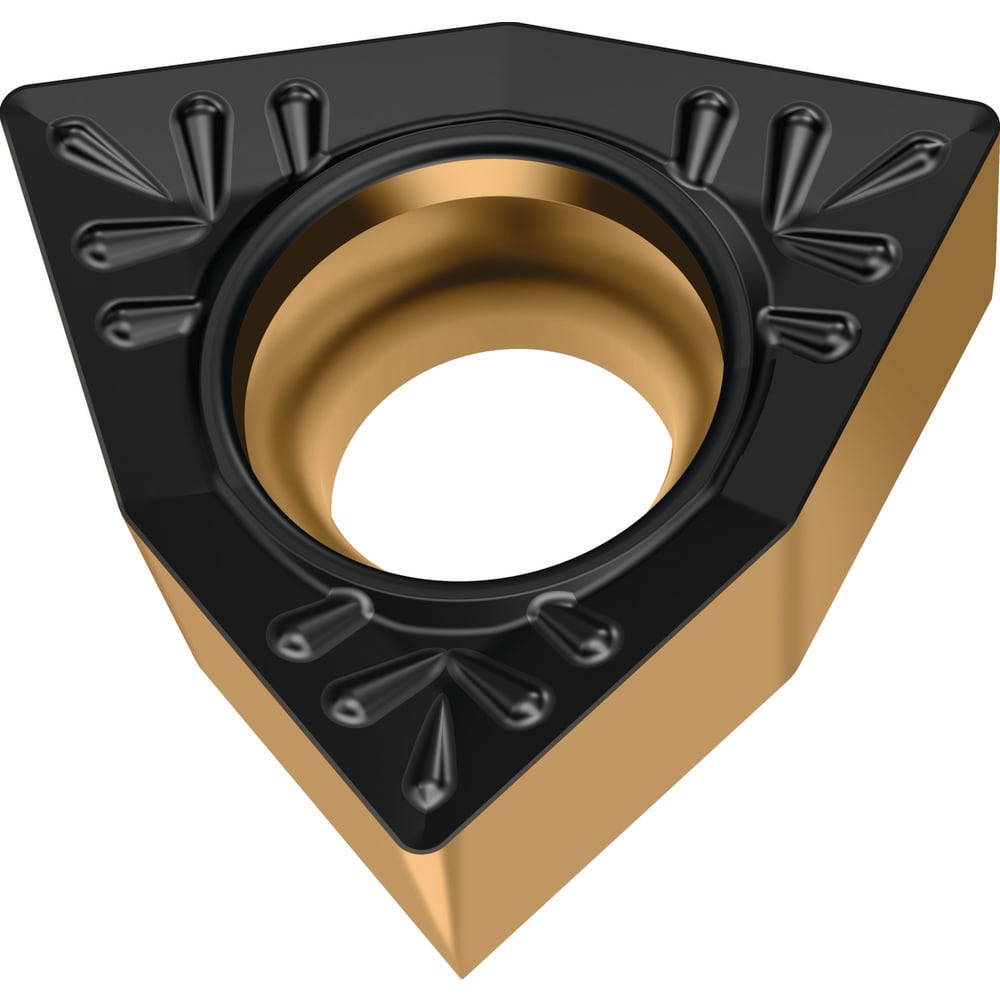

Turning Insert: WCMT32.52RP4 WPP30G, Carbide
Item #: 91643015
Brand: Walter
Model #: 8205048
Product Specifications
| ANSI Insert Code | WCMT3(2.5)2 |
| ISO Insert Code | WCMT06T308 |
| Relief Angle | 7.000 |
| Insert Style | WCMT |
| Corner Radius (mm) | 0.80 |
| Included Angle | 80.00 |
| Manufacturer Grade | WPP30G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Series | WCMT |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Trigon 80° |
| Chip Breaker Operation | Roughing |
| Grade Characteristics | Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness; Steel (P) - High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | W |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 6.52 |
| Manufacturers Catalog Number | WCMT06T308-RP4 WPP30G |
| Chip Breaker | RP4 |
| Width (mm - 2 Decimals) | 9.53 |
| ANSI Size Code | 3(2.5)2 |
| ISO Size Code | 06T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 06 |
| Country of Origin | Germany |
