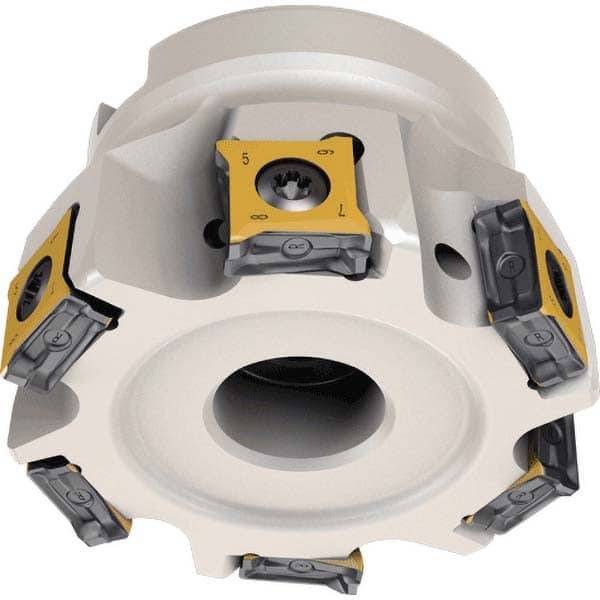

Indexable Square-Shoulder Face Mill: T890HT FLND2.5081.0R13, 2-1/2'' Cut Dia, 1.0000″ Arbor Hole Dia, 0.3740″ Max Cutting Depth Uses 8, LN.T 1306 Inserts, Through Coolant, Series T890HT
Item #: 98588098
Brand: Iscar
Model #: 3332799
Product Specifications
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Cutting Diameter (mm) | 63.50 |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | LN.T 1306 |
| Cutter Style | T890HT FLN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Series | T890HT |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Hub Diameter (mm) | 57.20 |
| Hub Diameter (Decimal Inch) | 2.2520 |
| Standards | ISO |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
