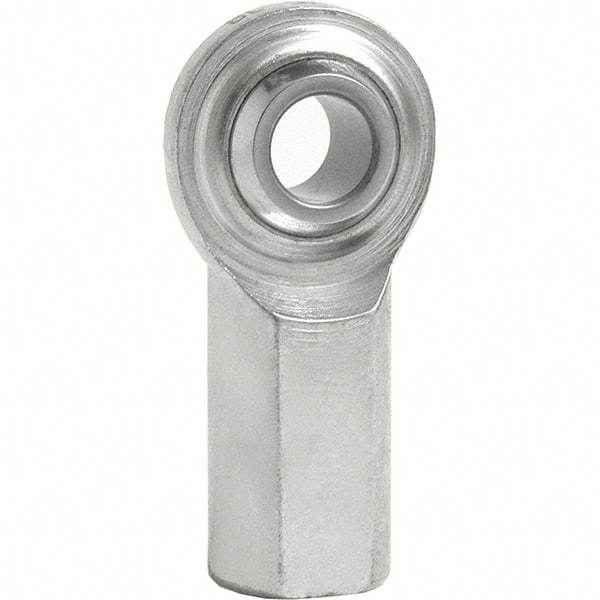

Tritan - 3/4" ID, 14,250 Lb Max Static Cap, Female Spherical Rod End - 3/4-16 UNF RH, 7/8" Shank Diam, 1-9/16" Shank Length, Zinc Plated Carbon Steel with Low Carbon Steel Raceway
Item #: 98572795
Brand: Tritan
Model #: CF 12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.7500 |
| Inside Diameter (mm) | 19.1000 |
| Inside Diameter (Inch) | 3/4 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 14250.0 |
| Width (Inch) | 1-3/4 |
| Width (Decimal Inch) | 1.7500 |
| Width (mm) | 44.50 |
| Thread Size | 3/4-16 UNF |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 22.2000 |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Shank Diameter (Inch) | 7/8 |
| Raceway Material | Low Carbon Steel |
| Shank Length (Decimal Inch) | 1.5620 |
| Shank Length (mm) | 39.700 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 3-3/4 |
| Overall Length (mm) | 95.3000 |
| Overall Length (Decimal Inch) | 3.7500 |
