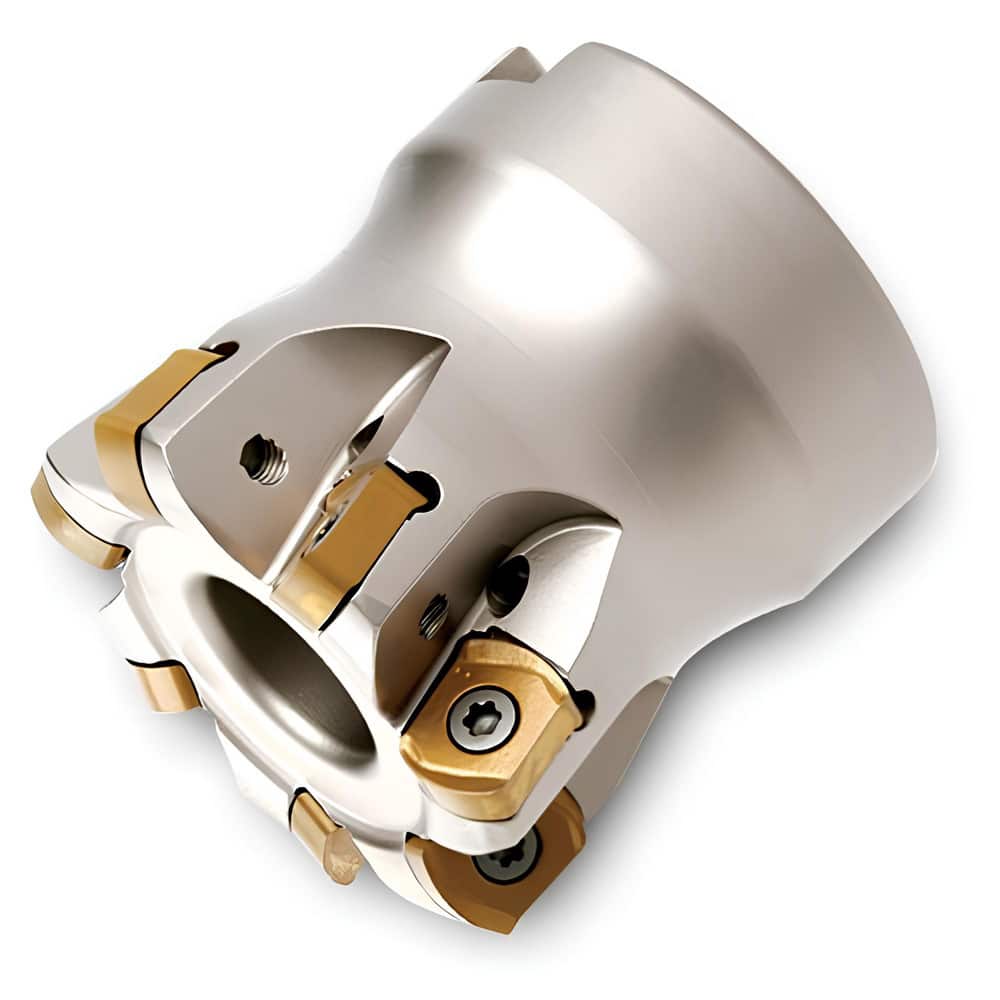

Indexable High-Feed Face Mill: 50 mm Cut Dia, 22 mm Arbor Hole Takes (5) 0904 Inserts, Through Coolant
Item #: 98204753
Brand: Ingersoll Cutting Tools
Model #: 3113397
Product Specifications
| Minimum Cutting Diameter | 50.00 mm |
| Maximum Cutting Diameter | 50.00 mm |
| Maximum Depth Of Cut | 1.52 mm |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | 0904 |
| Maximum Ramping Angle | 1 ? |
| Series | TG3G |
| Cutter Style | TG3G |
| Number of Cutter Inserts | 5 |
| Through Coolant | Normal Pressure |
| Keyway Width | 15.8800 |
| Overall Height | 50.00 mm |
| Tool Application | Facing; Helical Interpolation; Plunging; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
