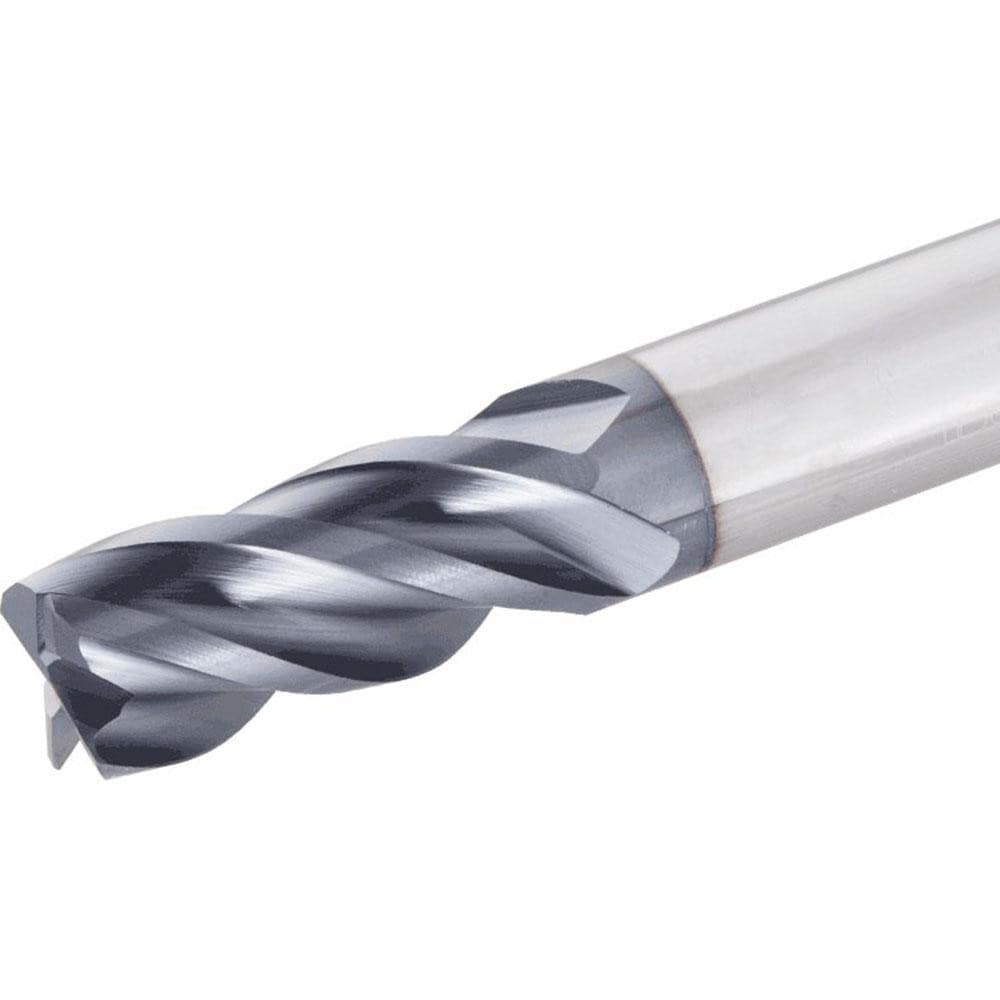

Corner Radius End Mill: 20 mm Dia, 40.00 mm LOC, 4 Flute, Solid Carbide
Item #: 34000273
Brand: Tungaloy
Model #: 5667170
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 40.00 |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 104.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Regular |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 20.00 |
| Corner Radius Tolerance | 1.00000 mm |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Material Grade | AH725 |
| Series | TECK-H4M-CF-R |
| For Use With. | BT-FC-EM; HSK A-EM; DIN69871-EM; C-EM Endmill Holder; BT-EM; DIN2080-EM |
