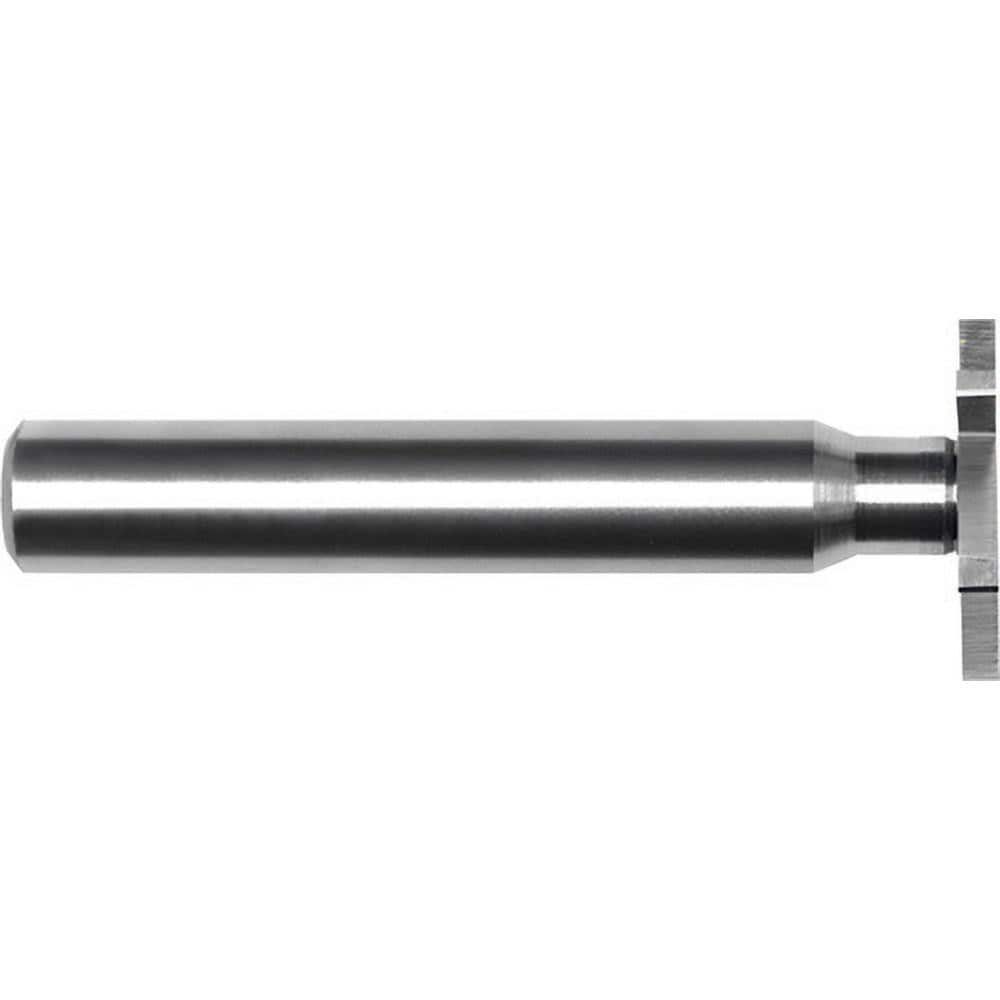

Woodruff Keyseat Cutter: 3/4" Cut Dia, 3/8" Cut Width, 1/2" Shank Dia, Straight Tooth
Item #: 57513665
Brand: Internal Tool
Model #: 78-1810
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 3/4 |
| Cutter Diameter (Decimal Inch) | 0.7500 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 3/8 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.2800 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Primary Workpiece Material | Non-Ferrous Metal; Non-ISO |
| Primary Workpiece Material Code | N; O |
| Cutter Material Grade | Micrograin |
| Series | 78 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 6 |
| UNSPSC Code | 23241631 |
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 3/4 |
| Cutter Diameter (Decimal Inch) | 0.7500 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 3/8 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.2800 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Primary Workpiece Material | Non-Ferrous Metal; Non-ISO |
| Primary Workpiece Material Code | N; O |
| Cutter Material Grade | Micrograin |
| Series | 78 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 6 |
| UNSPSC Code | 23241631 |
| MSC Part # | 57513665 |
| Mfr Part # | 78-1810 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
