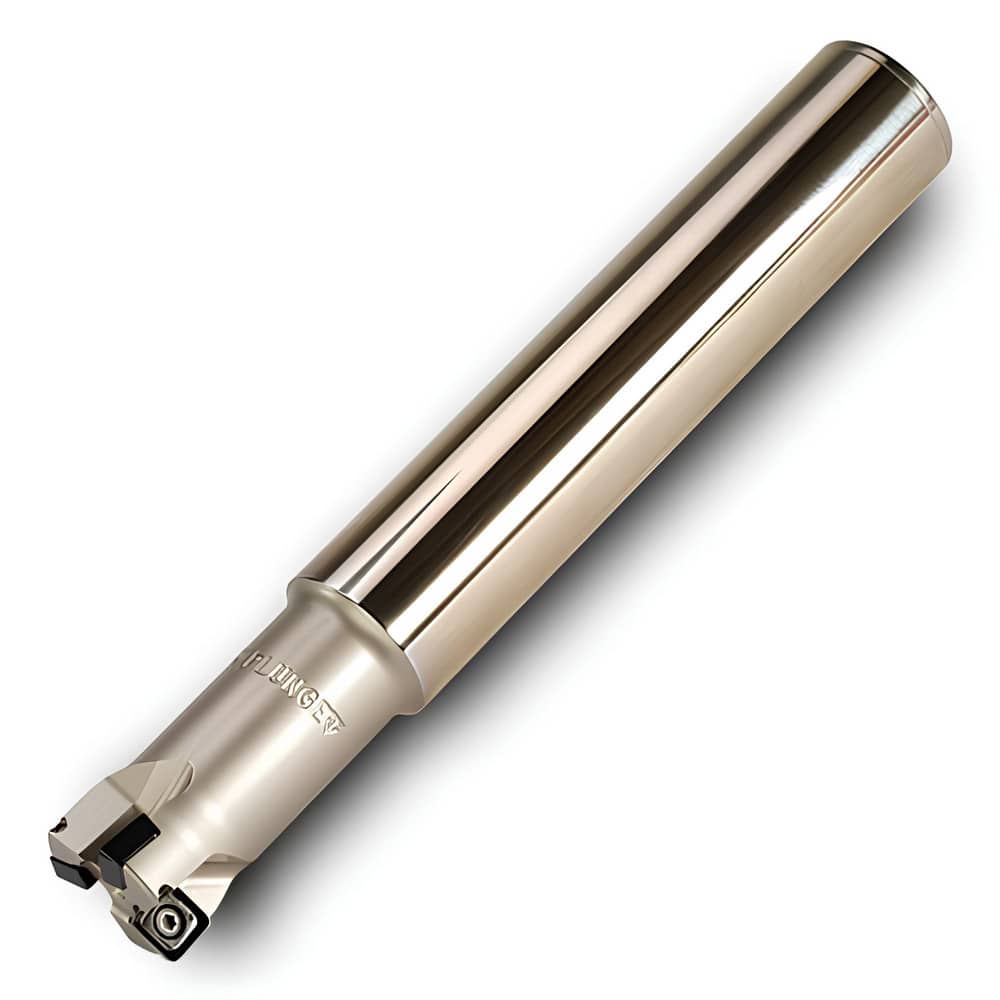

Indexable Plunge End Mills; Maximum Cutting Diameter: 1.5000 in; Shank Type: Cylindrical; Maximum Depth Of Cut: 0.4500 in; Toolholder Style: QHU; Shank Diameter (Inch): 1.5000; Shank Diameter (mm): 1.5000; Compatible Insert Style: SD.S; Compatible Insert
Item #: 97852354
Brand: Ingersoll Cutting Tools
Model #: 2909981
Product Specifications
| Maximum Cutting Diameter | 1.5000 in |
| Shank Type | Cylindrical |
| Maximum Depth Of Cut | 0.4500 in |
| Toolholder Style | QHU |
| Shank Diameter (Inch) | 1.5000 |
| Shank Diameter (mm) | 1.5000 |
| Compatible Insert Style | SD.S |
| Compatible Insert Size Code | 1305 |
| Series | QHU |
| Number of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Flute Type | Straight |
| Overall Length/Projection (Decimal Inch) | 10.00 |
| Functional Length | 3.0000 in |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Decimal Inch) | 0.6000 in |
| Shank Length (Decimal Inch) | 7.0000 in |
| Shank Length (mm) | 7.0000 in |
| Through Coolant | Normal Pressure |
| Rake | Positive |
