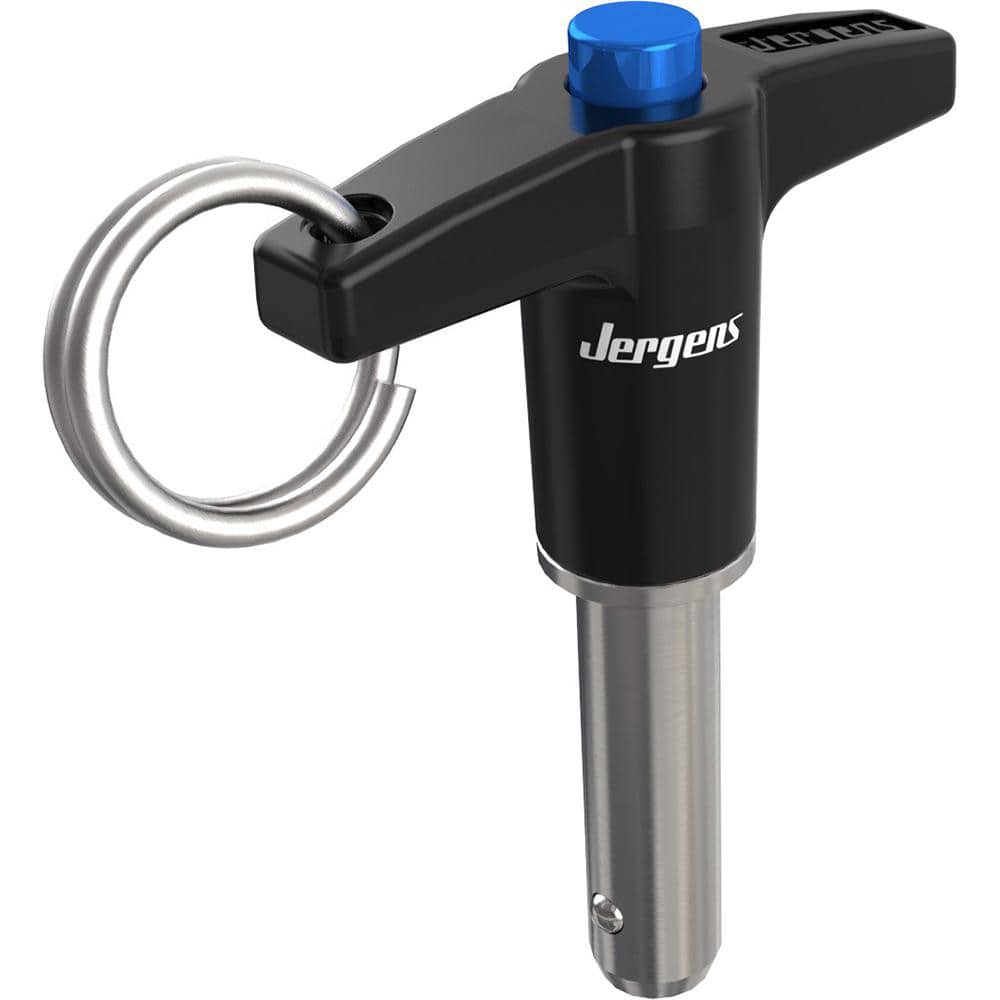

Ball Grip Quick-Release Pin: T-Handle, 3/4″ Pin Dia, 2-1/2″ Usable Length 4.22″ OAL, 17-4 Stainless Steel, Aluminum Handle
Item #: 97194815
Brand: Jergens
Model #: 801136
Product Specifications
| Pin Type | Ball Grip Quick-Release |
| Handle Type | T-Handle |
| Pin Diameter (Inch) | 3/4 |
| Pin Diameter (Decimal Inch) | 0.7500 |
| Usable Length (Inch) | 2-1/2 |
| Usable Length (Decimal Inch) | 2.5000 |
| Overall Length (Decimal Inch) | 4.2200 |
| Pin Material | Stainless Steel |
| Pin Material Grade | 17-4 |
| Ball Material | Stainless Steel |
| Ball Material Grade | 17-4 |
| Ball Hardness | Rockwell C40 |
| Handle Material | Aluminum |
| Breaking Strength | 83200 |
| Pin Finish/Coating | Passivated |
| Spindle Hardness | Rockwell C40 |
| Fastener Standard | MS17985; NAS1333-NAS1343 |
| Handle Finish/Coating | Black Cast |
