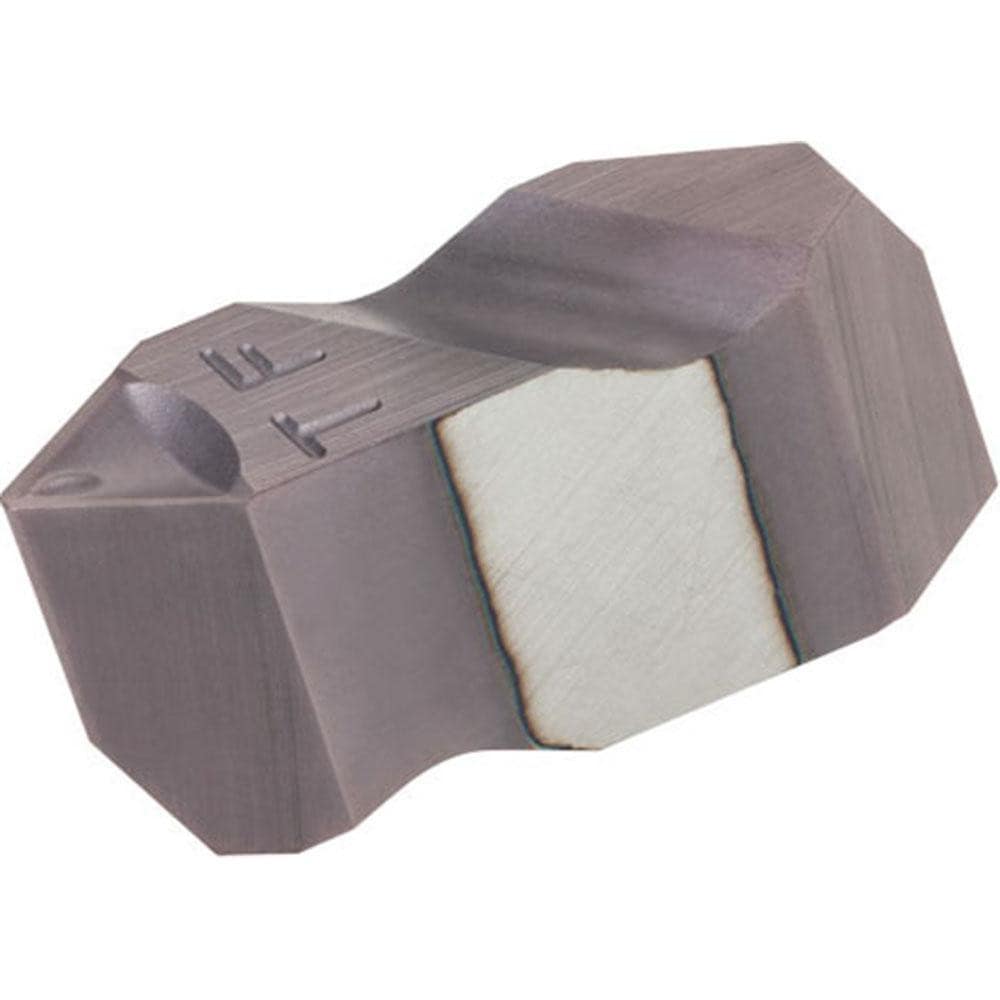

Threading Insert: 3 Size, FLT Style, AH725 Grade, AH725Grade, Carbide
Item #: 39970306
Brand: Tungaloy
Model #: 2413048
Product Specifications
| Insert Style | FLT |
| Insert Material | Carbide |
| Manufacturer Grade | AH725 |
| Material Grade | AH725 |
| Thread Standard | V60 |
| Insert Hand | Right Hand |
| Internal Pitch | 2.11-5.08 mm |
| External Pitch | 1.27-4.23 mm |
| Included Angle | 60.00 |
| Chipbreaker | CB |
| Series | FLT-CB |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Shape | Parallelogram |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3440 |
| Thread Type | Internal; External |
| UNSPSC Code | 23291804 |
