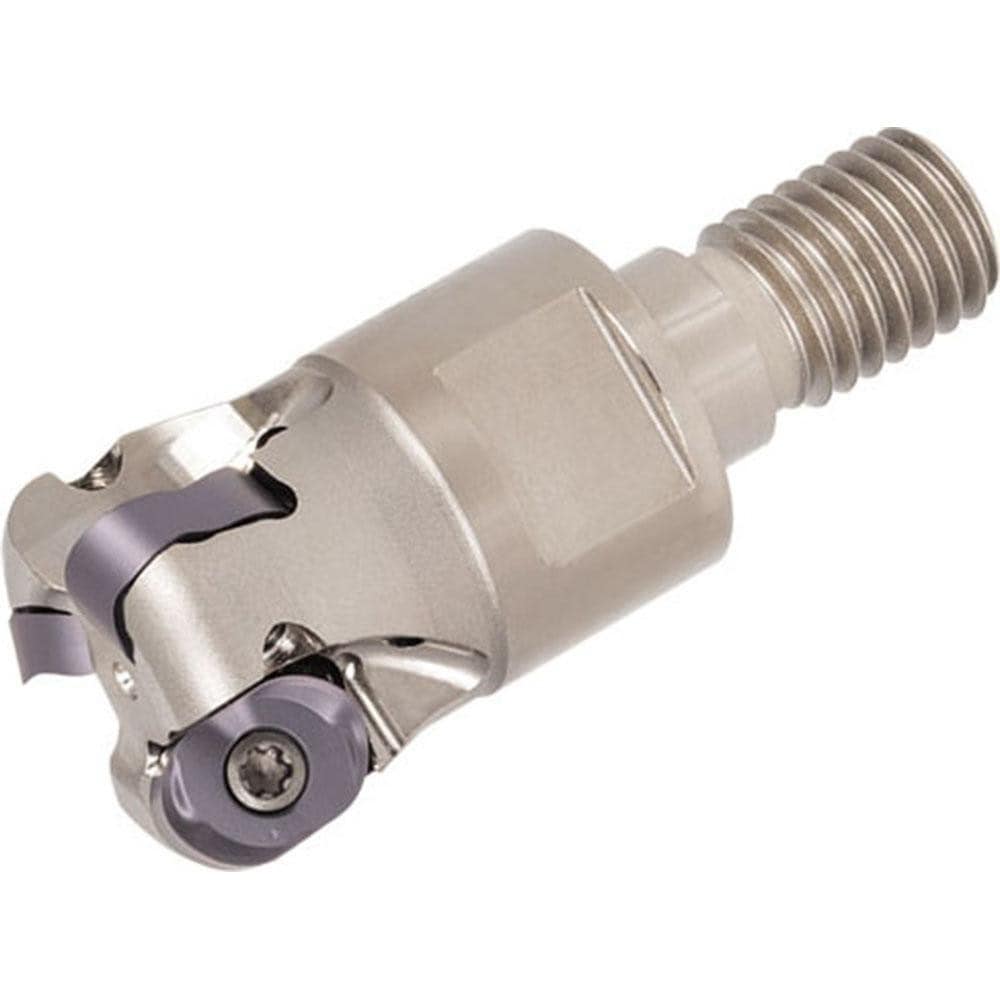

Indexable Copy End Mills; Cutting Diameter (mm): 20.00; Minimum Cutting Diameter (mm): 20.00; Maximum Cutting Diameter (mm): 32.00
Item #: 60844933
Brand: Tungaloy
Model #: 6776578
Product Specifications
| Cutting Diameter (mm) | 20.00 |
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Toolholder Style | HXLN |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.8000 |
| Maximum Ramping Angle | 3.4 |
| Compatible Insert Style | LNMX |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 06 |
| Number Of Cutter Inserts | 2 |
| Overall Length (mm) | 63.0000 |
| Series | HXLN-06 |
| Flute Type | Straight |
| Modular Connection Size | M16 |
| Functional Length (mm) | 40.00 |
| Head Length (mm) | 40.00 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Cutting Diameter (mm) | 20.00 |
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Toolholder Style | HXLN |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.8000 |
| Maximum Ramping Angle | 3.4 |
| Compatible Insert Style | LNMX |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 06 |
| Number Of Cutter Inserts | 2 |
| Overall Length (mm) | 63.0000 |
| Series | HXLN-06 |
| Flute Type | Straight |
| Modular Connection Size | M16 |
| Functional Length (mm) | 40.00 |
| Head Length (mm) | 40.00 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| MSC Part # | 60844933 |
| Mfr Part # | 6776578 |
| Country of Origin Country of Origin is subject to change | Japan |
