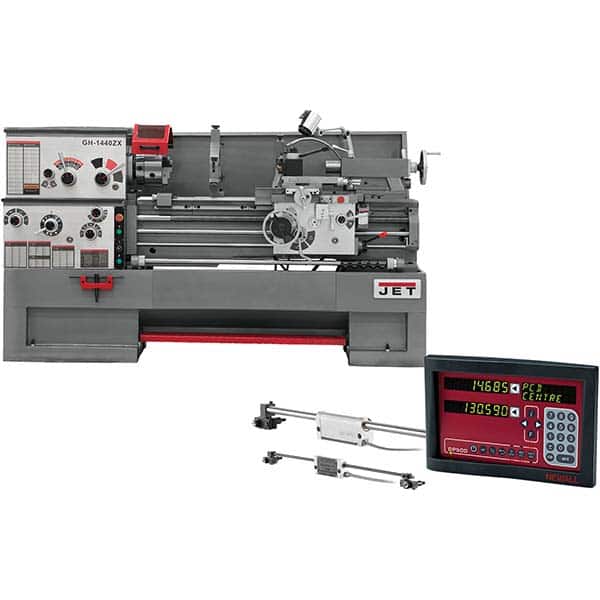

Jet - 3 Phase 230/460V 7-1/2 hp 14" Swing Geared Head Engine Lathe
Item #: 96916705
Brand: Jet
Model #: 0601262/4674526
Product Specifications
| Machine Type | Engine Lathe |
| Spindle Speed Control | Geared Head |
| Phase | 3 |
| Voltage | 230/460 |
| Horsepower (HP) | 7-1/2 |
| Swing (Inch) | 14 |
| Distance Between Centers (Inch) | 40 |
| Spindle Bore Diameter (Inch) | 3-1/8 |
| Spindle Taper Size | 7MT |
| Spindle Taper Size (Sleeve) | 5MT |
| Swing Over Gap (Inch) | 23-5/8 |
| Swing Over Gap (Decimal Inch) | 23.6250 |
| Swing Over Cross Slide (Inch) | 7-5/8 |
| Swing Over Cross Slide (Decimal Inch) | 7.6250 |
| Gap Length (Decimal Inch) | 12.2500 |
| Bed Width (Inch) | 13.3750 |
| Spindle Nose Designation | D1-8 |
| Number of Spindle Speeds | 12 |
| Minimum Spindle Speed (RPM) | 42.00 |
| Maximum Spindle Speed (RPM) | 1800.00 |
| Number of Inch Threads | 61 |
| Maximum Threads Per Inch | 72 |
| Minimum Metric Pitch (Decimal Inch) | 0.0500 |
| Maximum Metric Pitch (Decimal Inch) | 20.0000 |
| Number of Metric Threads | 24 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0015 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0913 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000600 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0365 |
| Minimum Threads Per Inch | 1-5/8 |
| Cross Slide Travel (Decimal Inch) | 9.0000 |
| Top Slide Travel (Decimal Inch) | 5.1250 |
| Tailstock Travel (Decimal Inch) | 5.0000 |
| Tailstock Taper Size | 4MT |
| Overall Length (Inch) | 97-1/2 |
| Overall Length (Decimal Inch) | 97.50000 |
| Overall Height (Inch) | 46-7/8 |
| Overall Height (Decimal Inch) | 46.8750 |
| Overall Depth (Inch) | 40 |
| Overall Depth (Decimal Inch) | 40.0000 |
| Includes 1 | 10"3-Jaw Scroll Chuck With Top Reversing Jaws; 12" Face Plate; 5 pc Quick Change Tool Post Set; Follow Rest; Large Capacity Steady Rest with Ball Bearing Tips; Articulating Led Work Lamp; Live Center; Tool Box and Adjusting Tools; 10x40" 2-Axis NMS300 Lat |
| Includes | 10"3-Jaw Scroll Chuck With Top Reversing Jaws; 12" Face Plate; 5 pc Quick Change Tool Post Set; Follow Rest; Large Capacity Steady Rest with Ball Bearing Tips; Articulating Led Work Lamp; Live Center; Tool Box and Adjusting Tools; 10x40" 2-Axis NMS300 Lat |
| Compound Travel | 5-1/8 |
