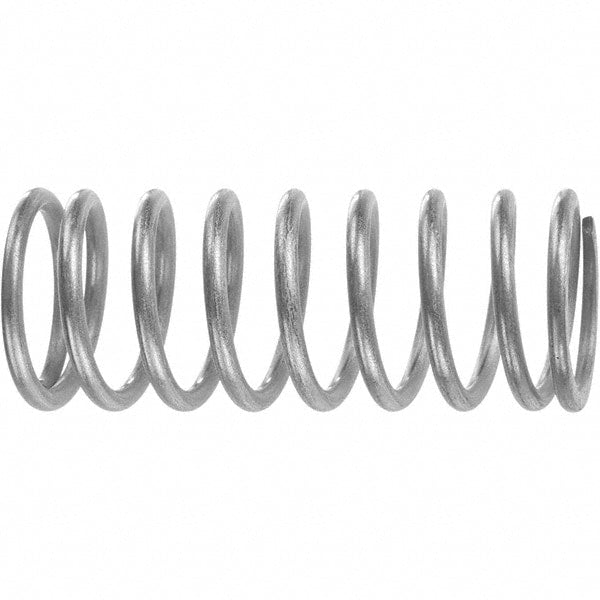

Precision Compression Spring: 0.7600" OD, 2-1/2" Free Length
Item #: 94847548
Brand: Associated Spring Raymond
Model #: C0764-135-2500M
Product Specifications
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7600 |
| Free Length (Inch) | 2-1/2 |
| Spring Rate | 175.8 |
| End Type | Ground; Square |
| Maximum Work Load (Lb.) | 85.60 |
| Material | Carbon Steel |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.1350 |
| Hole Diameter (Decimal Inch) | 0.4900 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 1.8300 |
| Free Length (Decimal Inch) | 2.5000 |
| Color | Silver |
| Standards | AMS 5112; ASTM A228 |
| UNSPSC Code | 31161904 |
| Country of Origin | China |
