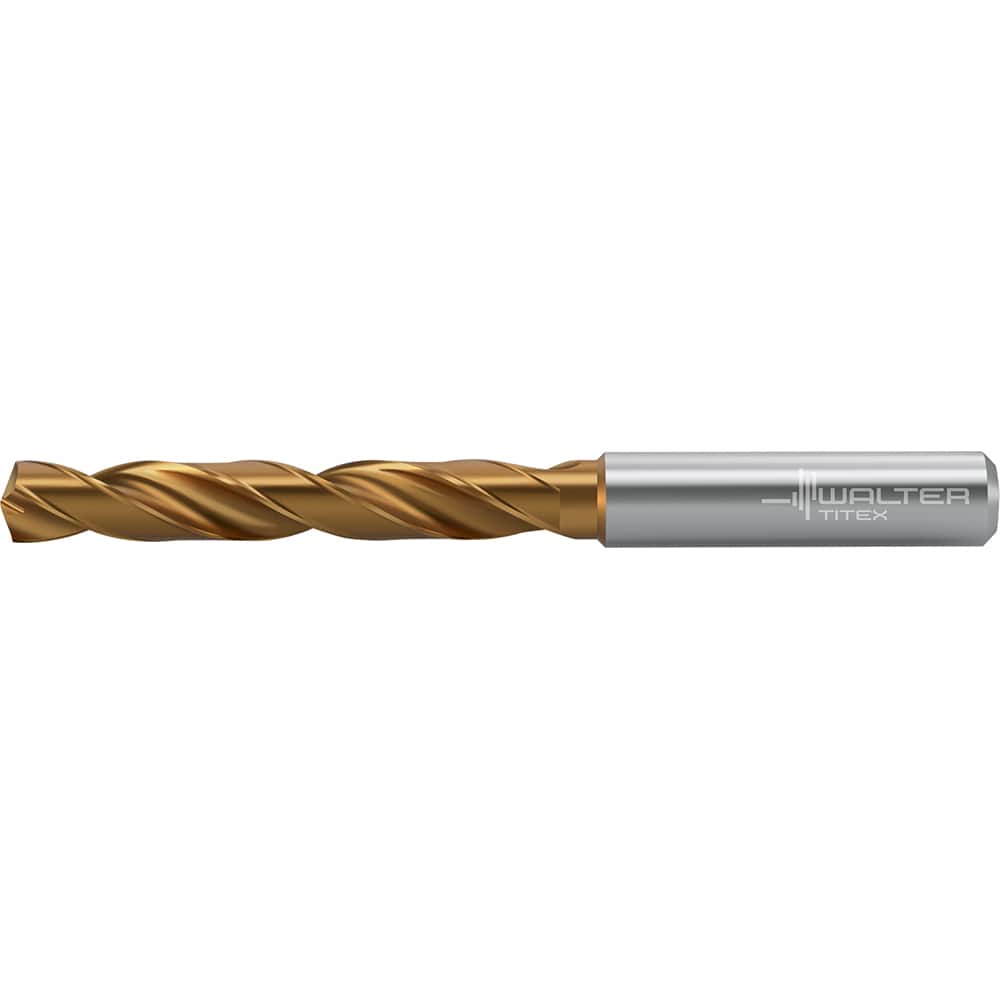

Jobber Length Drill Bit: 0.8071″ Dia, 140 °, Solid Carbide TiSiAlCrN, AlTiN Finish, 6.535″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series DC160-05-A0
Item #: 96376496
Brand: Walter-Titex
Model #: 7378780
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.8071 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiSiAlCrN/AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Overall Length (Decimal Inch) | 6.5350 |
| Flute Length (Decimal Inch) | 4.2520 |
| Series | DC160-05-A0 |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 3.3860 |
| Shank Length (Decimal Inch) | 2.2050 |
| Drill Point Length (Decimal Inch) | 0.1470 |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Material Grade | WJ30ET |
