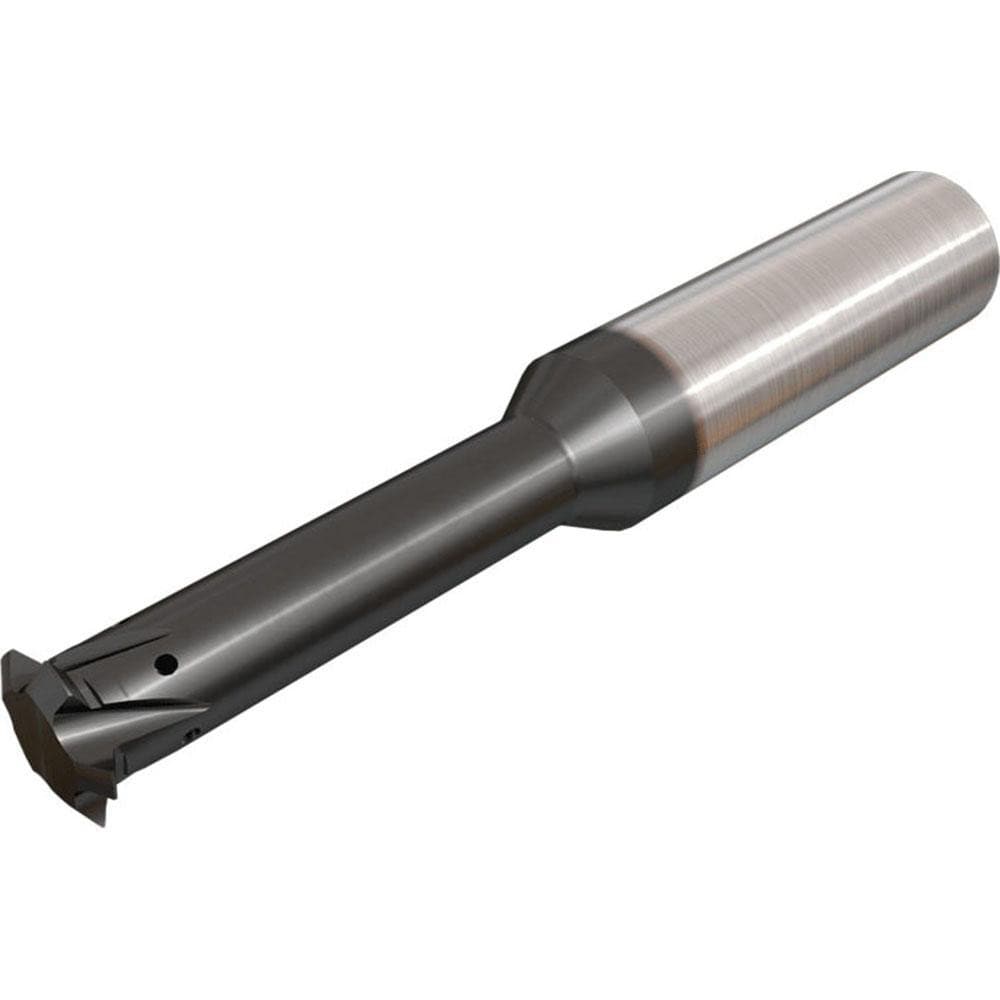

Straight Flute Thread Mills; Pitch (mm): 2.50; Material: Solid Carbide; Thread Size (mm): M20; Thread Depth: 50.0000; Thread Depth (mm): 50.00; Thread Type: Internal, External
Item #: 06365399
Brand: Tungaloy
Model #: 5606407
Product Specifications
| Pitch (mm) | 2.50 |
| Material | Solid Carbide |
| Thread Size (mm) | M20 |
| Thread Depth | 50.0000 |
| Thread Depth (mm) | 50.00 |
| Thread Type | Internal; External |
| Thread Standard | Metric |
| Shank Diameter (mm) | 16.0000 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Cutting Diameter (mm) | 16.00 |
| Length of Cut (mm) | 50.0000 |
| Minimum Nominal Diameter (mm) | 16.00 |
| Overall Length (mm) | 101.0000 |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
| Coating/Finish | TiAlN |
| Teeth Per Inch | 10-15 |
| UNSPSC Code | 23242117 |
