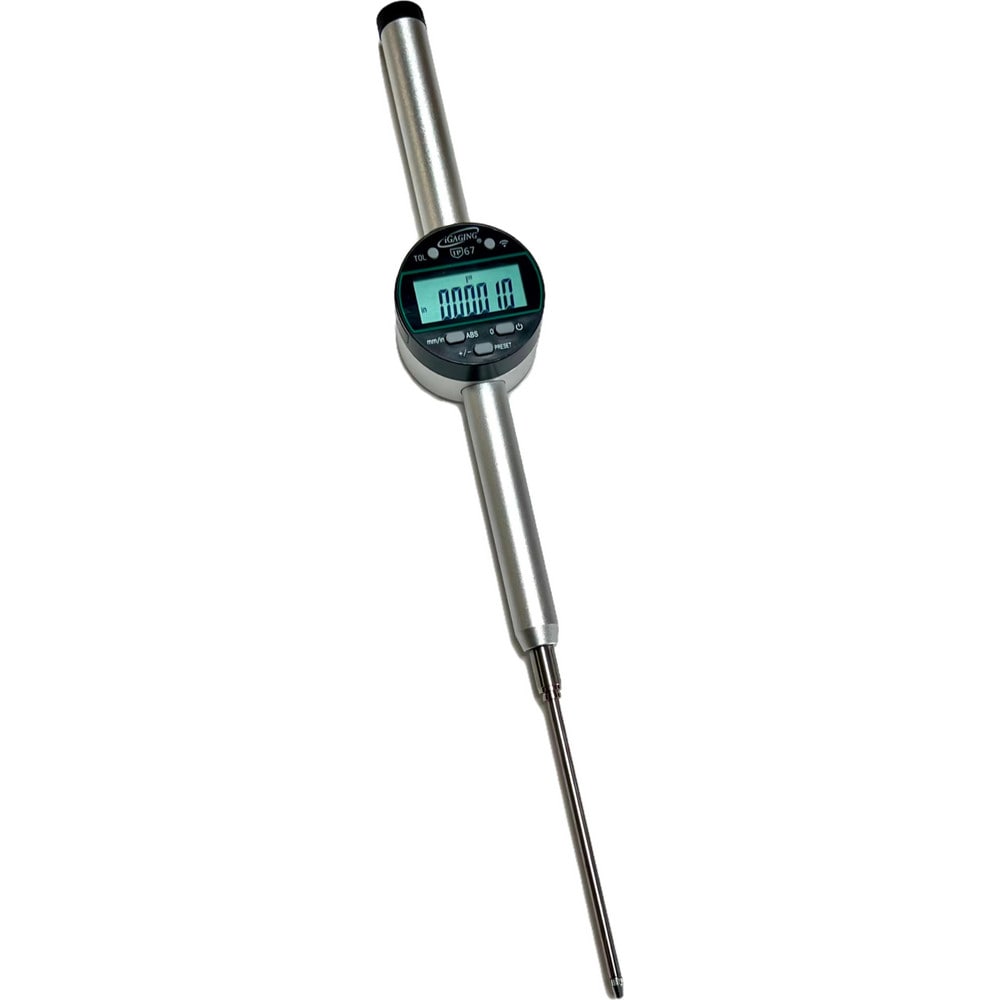

LCD Digital Electronic Drop Indicator: 4.0000" Max, Flat & Lug Back
Item #: 84648864
Brand: iGaging
Model #: 35-B67-99
Product Specifications
| Back Type | Flat & Lug |
| Connection Type | Straight |
| Display Type | LCD Digital |
| Accuracy (mm) | 0.01 |
| Accuracy (Decimal Inch) | 0.0004 |
| Calibrated | No |
| Measuring Force (N) | 2.10 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Minimum Measurement (mm) | 0 |
| Maximum Measurement (mm) | 100.000 |
| Maximum Measurement (Decimal Inch) | 4.0000 |
| Contact Point Material | Ceramic |
| Power Source | Battery; Data Cable |
| Unit of Measure | Metric |
| Batteries Included | Yes |
| Number Of Batteries | 1 |
| Battery Chemistry | Lithium |
| Battery Size | CR2032 |
| Resolution (mm) | 0.001 |
| Resolution (Decimal Inch) | 0.00005 |
| Traceability Certification Included | Inspection Report with Declaration of Conformity |
| Dial Diameter (mm) | 5.00 |
| Contact Point Length (mm) | 8 |
| Stem Diameter (Inch) | 3/8 |
| Features | ABS; Direction Indicator; Smart Wireless Data Output; iP67 Protective Rating; in/mm Reading Tolerance |
| Includes | Finger Left; Battery; Instruction; Indicator; Case |
| Standards | Measure Range |
| Water/Dust Protection Guide | IP67 |
| UNSPSC Code | 41111600 |
| Country of Origin | China |
