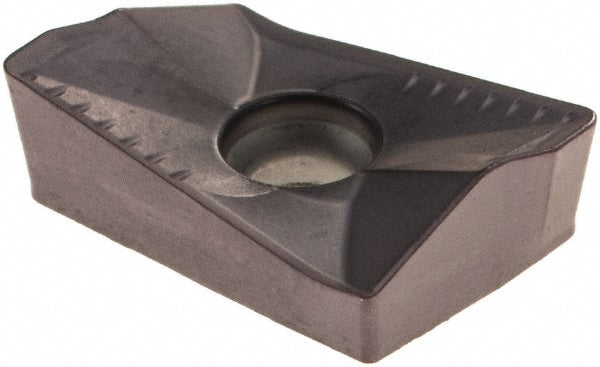

Milling Insert: ANMT1404PPPR-ML AH120 AH120, Solid Carbide
Item #: 78069341
Brand: Tungaloy
Model #: 6800925
Product Specifications
| Insert Style | ANMT |
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | AH120 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 1404 |
| Material Grade | M15; S10; P15; K15 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | ANMT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | ANMT1404PPPR-ML AH120 |
| Iso Code | ANMT1404PPPR-ML AH120 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | ANMT1404PPPR-ML |
| Cutter Series Compatibility | EPO07; HPO07-M; TPO07 |
| Chip Breaker | ML |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5510 |
| Country of Origin | Japan |
