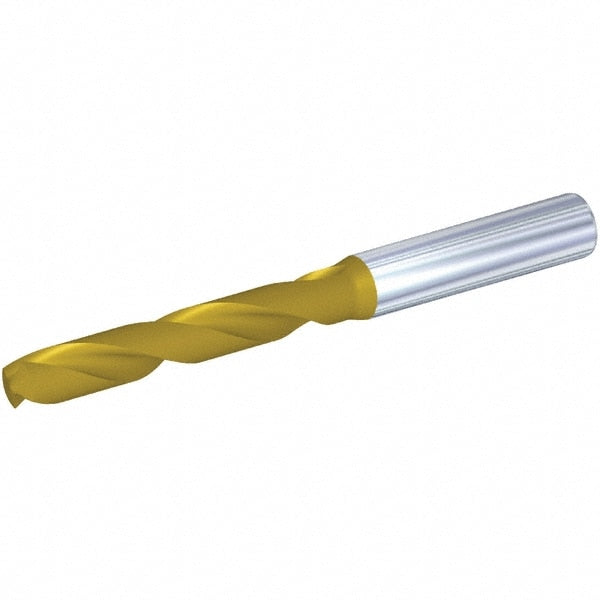

Jobber Drill: 8.70 mm Dia, 140 deg Point, Solid Carbide
Item #: 77371961
Brand: Kennametal
Model #: 4150747
Product Specifications
| Drill Bit Size (mm) | 8.70 |
| Drill Bit Size (Decimal Inch) | 0.3425 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Number of Flutes | 2 |
| Overall Length (mm) | 103.00 |
| Overall Length (Decimal Inch) | 4.0551 |
| Flute Length (mm) | 61.00 |
| Flute Length (Decimal Inch) | 2.4016 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10 |
| Maximum Drilling Depth (mm) | 49.00 |
| Shank Length (mm) | 40 |
| Drill Point Length (mm) | 1.48 |
| Shank Type | Straight |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
| UNSPSC Code | 23241634 |
| Country of Origin | VARIOUS |
