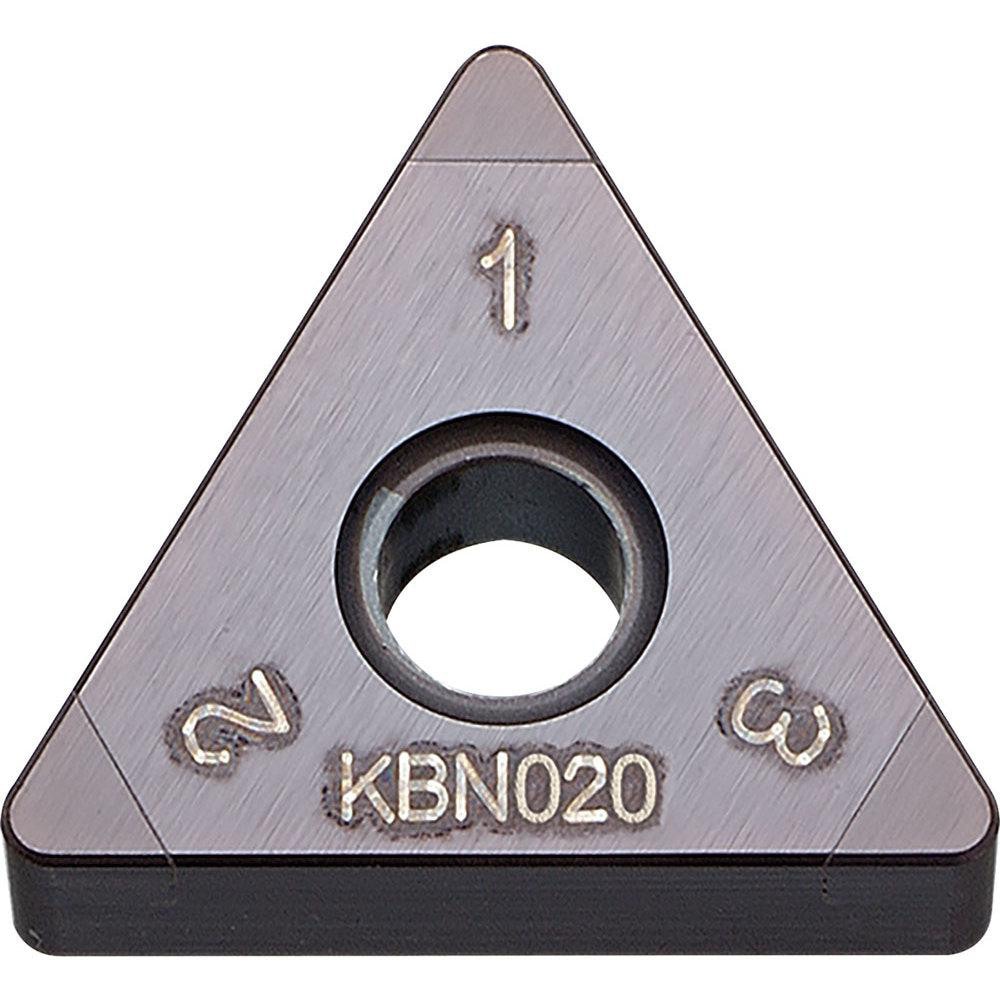

Turning Insert: TNGA331S00730MET, Cubic Boron Nitride (CBN)
Item #: 68896208
Brand: Kyocera
Model #: TFD00101
Product Specifications
| ANSI Insert Code | TNGA |
| ISO Insert Code | TNGA |
| Relief Angle | 0.000 |
| Insert Style | TNGA |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 60.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Triangle |
| Side Clearance | Negative |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Iso Code | TNGA160404S01730MET |
| Standards | KBN010 |
| Manufacturers Catalog Number | TNGA331S00730METKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Tough; Honed |
| Industry Standard Number | TNGA160404S01730MET |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.1063 |
| Tip Length (mm) | 2.70 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 331 |
| ANSI Insert Code | TNGA |
| ISO Insert Code | TNGA |
| Relief Angle | 0.000 |
| Insert Style | TNGA |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 60.00 |
| Manufacturer Grade | KBN010 |
| Coating/Finish | MEGACOAT TOUGH |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Triangle |
| Side Clearance | Negative |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Iso Code | TNGA160404S01730MET |
| Standards | KBN010 |
| Manufacturers Catalog Number | TNGA331S00730METKBN010 |
| Chip Breaker | None |
| Cutting Edge Style | Tough; Honed |
| Industry Standard Number | TNGA160404S01730MET |
| Multi-Use Tool | Yes |
| Tip Length (Decimal Inch) | 0.1063 |
| Tip Length (mm) | 2.70 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 331 |
| MSC Part # | 68896208 |
| Mfr Part # | TFD00101 |
| Country of Origin Country of Origin is subject to change | Ireland |
