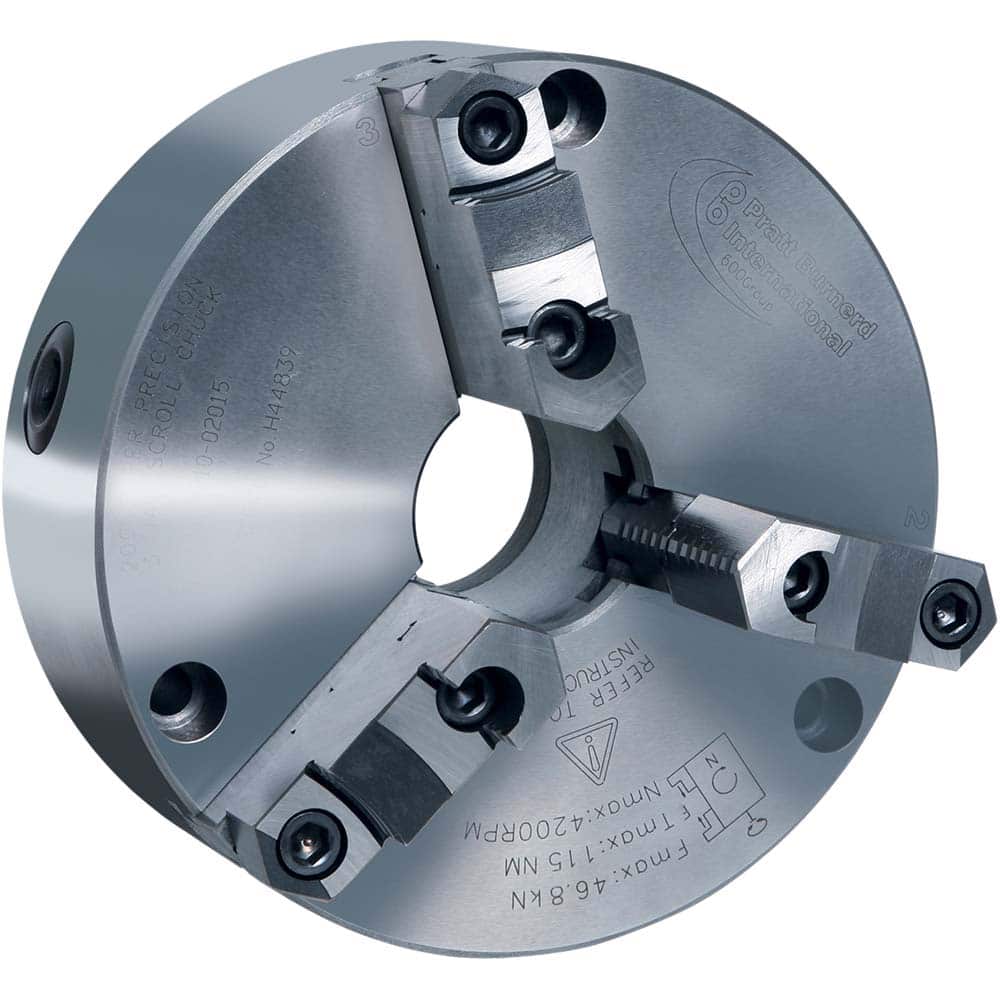

Pratt Burnerd America - Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 10 ; Number of Jaws: 3 ; Mount: Plain Back ; Through-Hole Diameter (Inch): 3 ; Body Material: Forged Steel
Item #: 94004835
Brand: Pratt Burnerd America
Model #: 1023500
Product Specifications
Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 10 ; Number of Jaws: 3 ; Mount: Plain Back ; Through-Hole Diameter (Inch): 3 ; Body Material: Forged Steel
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 10 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Inch) | 3 |
| Body Material | Forged Steel |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Decimal Inch) | 9.8400 |
| Minimum Jaw Capacity (Inch) | 0.5000; 1/2 |
| Minimum Jaw Capacity (Decimal Inch) | 0.5000; 1/2 |
| Maximum Jaw Capacity (Inch) | 8.0000; 8 |
| Maximum Jaw Capacity (Decimal Inch) | 8.0000; 8 |
| Series | 235 |
| Jaw Height (Decimal Inch) | 2.1300 |
| Adjustable | Yes |
| Jaw Type | Tongue & Groove Jaws |
| Radial Runout (Decimal Inch) | 0.0015 |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 3.3100 |
| Maximum RPM | 2700 |
| Includes | Mounting Plate |
