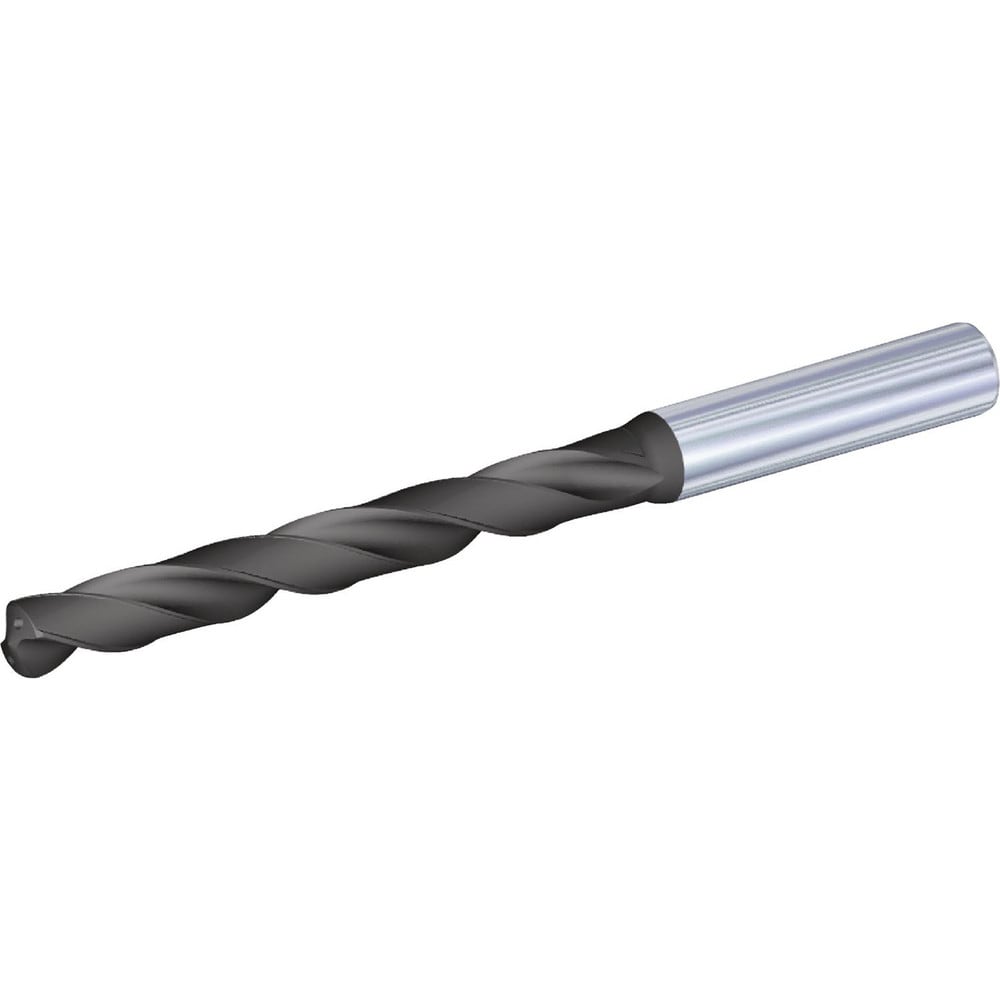

Brand: Widia / Part #: 4156892
Item #: 03305174
Brand: Widia
Model #: 4156892
Product Specifications
| Drill Bit Size (mm) | 11.30 |
| Overall Length (mm) | 141.0000 |
| Flute Length (mm) | 94.00 |
| Tool Material | Carbide |
| Coating/Finish | AlCrN |
| Drill Point Angle | 140 |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | TDS413A |
| Point Type | Four Facet |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | 0.000300 to 0.001000 in |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Drill Bit Grade | WK15PD |
| Drill Point Length (mm) | 1.94 |
| Shank Diameter (mm) | 12.0000 |
| Shank Length (mm) | 45.000 |
| Flute By Diameter Ratio | 7xD |
| Maximum Drilling Depth (mm) | 79.00 |
