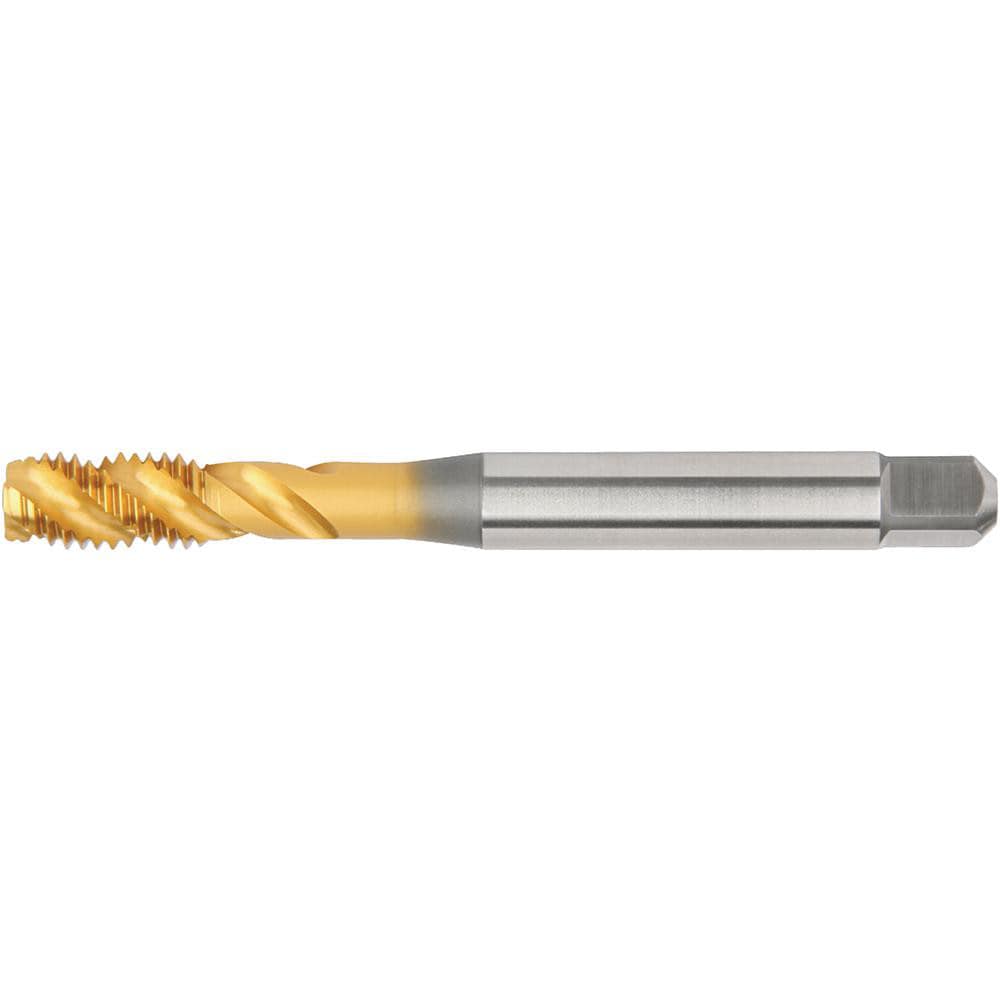

Brand: Widia / Part #: 5402225
Item #: 97475438
Brand: Widia
Model #: 5402225
Product Specifications
| Thread Size (mm) | M24x2 |
| Chamfer | Modified Bottoming |
| Thread Limit | D7 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Uncoated |
| Thread Depth (mm) | 67.00 |
| Coolant Through | No |
| Thread Length (mm) | 28.00 |
| Overall Length (mm) | 140.0000 |
| Thread Pitch (mm) | 2.00 |
| Thread Standard | Metric |
| Material Grade | WU40EG |
| Shank Diameter (mm) | 18.0000 |
| Square Length (mm) | 17.00 |
| Square Size (mm) | 14.50 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel |
| Series | VTSFT |
