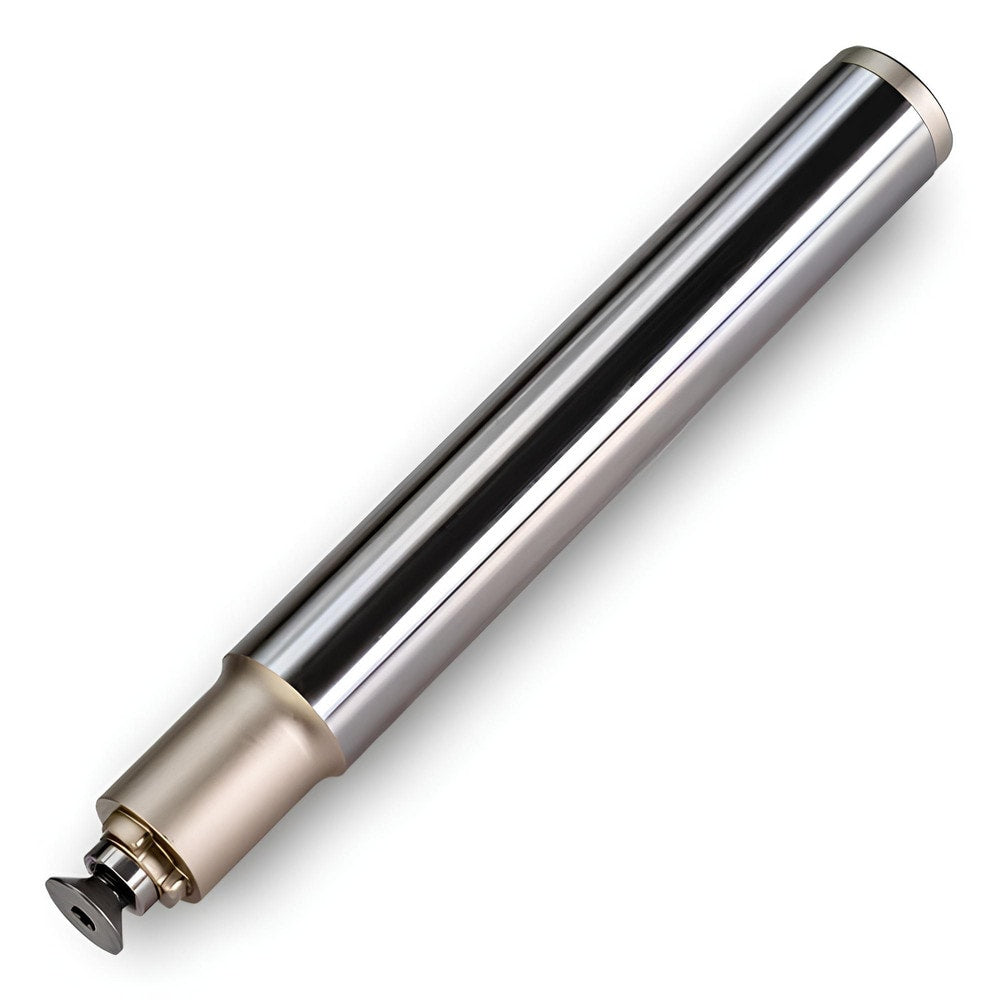

Brand: Ingersoll Cutting Tools / Part #: 6343155
Item #: 99327140
Brand: Ingersoll Cutting Tools
Model #: 6343155
Product Specifications
| Overall Length (Decimal Inch) | 5.1900 |
| Neck Diameter (Decimal Inch) | 0.5900 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.5900 |
| Toolholder Style | S*L*SA |
| Tool Material | Steel |
| Series | S*L*SA |
| Tip Connection Size | LQ |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 0.7800 |
| Extension Length (Decimal Inch) | 0.8000 |
| Shank Shape | Round |
| Thread Size Connection to Tip | LQ |
| Manufacturers Catalog Number | S062LQSA-07 |
| Type | "L" Style Thread Connection |
| Coolant Through | No |
