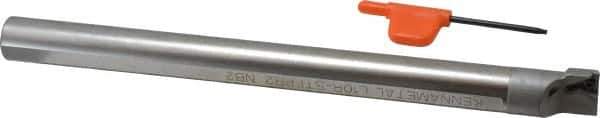

Kennametal - 0.77" Min Bore Diam, 8.082" OAL, 5/8" Shank Diam, L-STFP Indexable Boring Bar - 1.12" Max Bore Depth, TP.. Insert, Screw Holding Method
Item #: 93756013
Brand: Kennametal
Model #: 3331080
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | L-STFP |
| Series | Screw-On |
| Minimum Bore Diameter (Decimal Inch) | 0.7700 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.1200 |
| Overall Length (Decimal Inch) | 8.0820 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | TP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.1560 |
| Complete Insert Compatibility | TP.. 21.51 |
| Toolholder Material | Heavy Metal |
