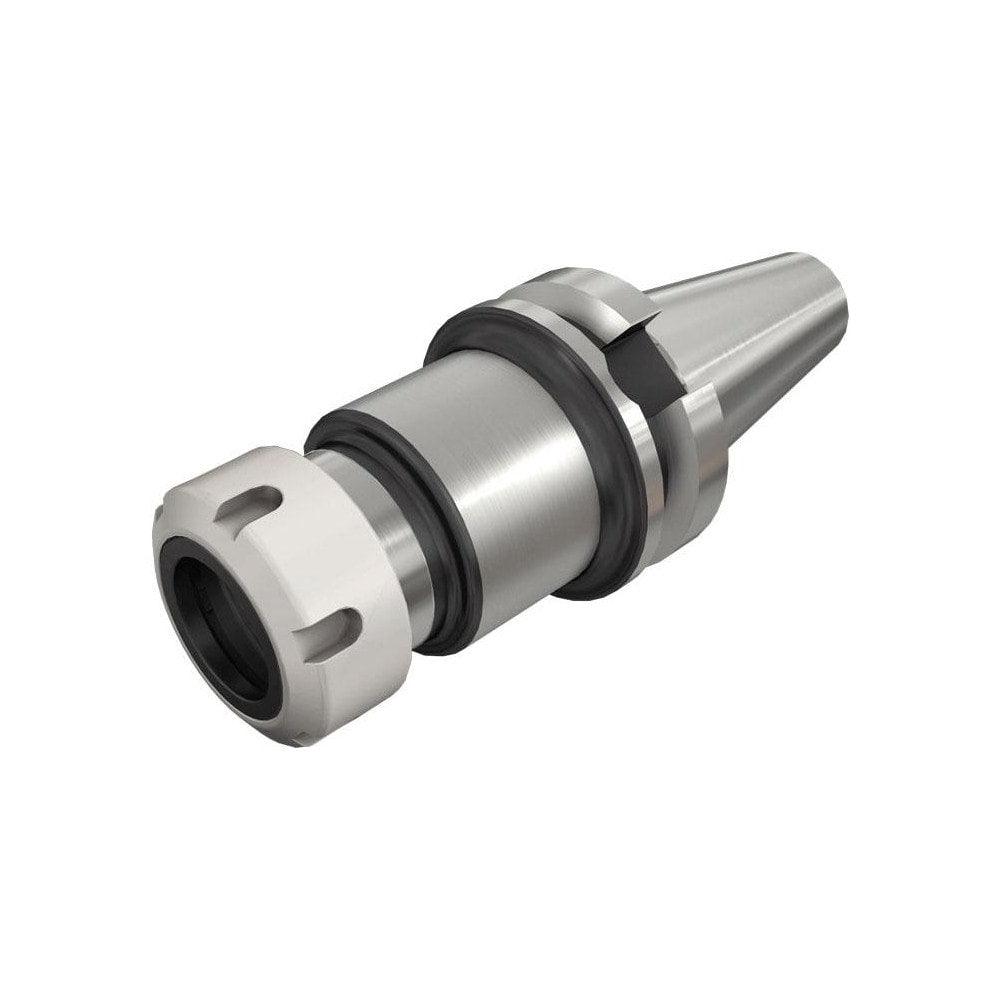

Collet Chuck: 2.00 to 20.00 mm Capacity, Full Grip Collet, 40.00 mm Shank Dia, Taper Shank
Item #: 33989161
Brand: Tungaloy
Model #: 4505420
Product Specifications
| Collet System | Full Grip |
| Collet Series | ER32 |
| Shank Type | Taper |
| Taper Size | BT40 |
| Projection (mm) | 120.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 2.00 |
| Maximum Collet Capacity (mm) | 20.00 |
| Overall Length (mm) | 120 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Mm) ( - 2 Decimals) | 50 |
| Shank Diameter (mm) | 40.00 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 50.00 |
| UNSPSC Code | 27112808 |
