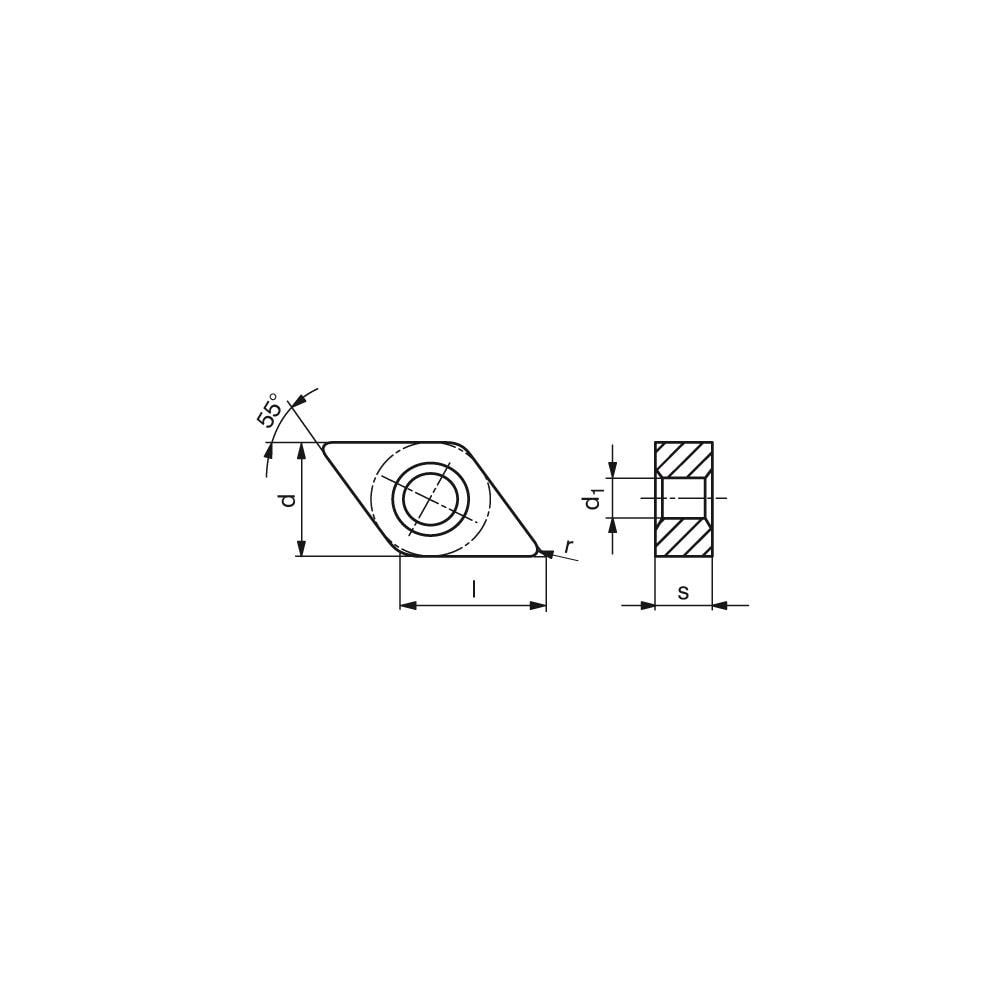

Turning Insert: DNMG442EN-FMS CT-P25, Carbide
Item #: 26288431
Brand: Ceratizit
Model #: 7530613009
Product Specifications
| ANSI Insert Code | DNMG442 |
| ISO Insert Code | DNMG150608 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | CTP25 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | DNMG |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.6102 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | DNMG 150608EN-FMS CT-P25 |
| Chip Breaker | FMS |
| ANSI Size Code | 442 |
| ISO Size Code | 150608 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 442 |
